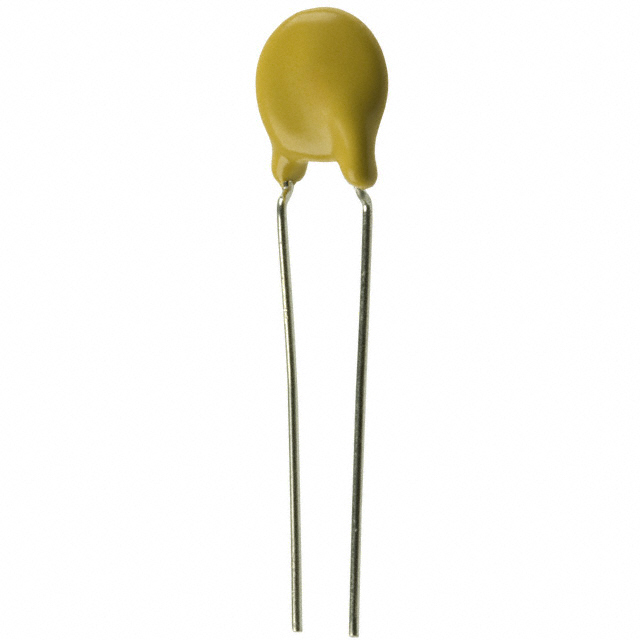

Specification	ECK-A3A152KBP

Applications	General Purpose
Capacitance	1500 pF
Features	High Voltage
Height - Seated (Max)	0.532 in
Lead Spacing	0.197 in
Lead Style	Formed Leads
Mounting Type	Through Hole
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-25 °C
Package / Case	Disc, Radial
Size / Dimension Diameter	0.374 in
Temperature Coefficient	Y5P (B)
Tolerance	10 %
Voltage - Rated	1000 V

ECK-A3 Series

Part	Features	Lead Spacing	Tolerance	Mounting Type	Temperature Coefficient	Height - Seated (Max)	Operating Temperature (Max)	Operating Temperature (Min)	Package / Case	Size / Dimension Diameter	Applications	Lead Style	Capacitance	Voltage - Rated
Panasonic Electronic Components ECK-A3D221KBP	High Voltage	0.295 in	10 %	Through Hole	Y5P (B)	0.433 in	125 °C	-25 °C	Disc Radial	0.276 in	General Purpose	Formed Leads	220 pF	2000 VAC
Panasonic Electronic Components ECK-A3D562KBP	High Voltage	0.394 in	10 %	Through Hole	Y5P (B)	1.142 in	125 °C	-25 °C	Disc Radial	0.984 in	General Purpose	Formed Leads	5600 pF	2000 VAC
Panasonic Electronic Components ECK-A3D472KBP	High Voltage	0.394 in	10 %	Through Hole	Y5P (B)	1.142 in	125 °C	-25 °C	Disc Radial	0.984 in	General Purpose	Formed Leads	4700 pF	2000 VAC
Panasonic Electronic Components ECK-A3F152KBP	High Voltage	0.394 in	10 %	Through Hole	Y5P (B)	0.728 in	125 °C	-25 °C	Disc Radial	0.571 in	General Purpose	Formed Leads	1500 pF	3000 V
Panasonic Electronic Components ECK-A3D101KBP	High Voltage	0.295 in	10 %	Through Hole	Y5P (B)	0.433 in	125 °C	-25 °C	Disc Radial	0.276 in	General Purpose	Formed Leads	100 pF	2000 VAC
Panasonic Electronic Components ECK-A3A222KBP	High Voltage	0.197 in	10 %	Through Hole	Y5P (B)	0.63 in	125 °C	-25 °C	Disc Radial	0.472 in	General Purpose	Formed Leads	2200 pF	1000 V
Panasonic Electronic Components ECK-A3A331KBP	High Voltage	0.197 in	10 %	Through Hole	Y5P (B)	0.394 in	125 °C	-25 °C	Disc Radial	0.236 in	General Purpose	Formed Leads	330 pF	1000 V
Panasonic Electronic Components ECK-A3A562KBP	High Voltage	0.394 in	10 %	Through Hole	Y5P (B)	0.827 in	125 °C	-25 °C	Disc Radial	0.669 in	General Purpose	Formed Leads	5600 pF	1000 V
Panasonic Electronic Components ECK-A3F101KBP	High Voltage	0.295 in	10 %	Through Hole	Y5P (B)	0.453 in	125 °C	-25 °C	Disc Radial	0.295 in	General Purpose	Formed Leads	100 pF	3000 V
Panasonic Electronic Components ECK-A3F331KBP	High Voltage	0.295 in	10 %	Through Hole	Y5P (B)	0.472 in	125 °C	-25 °C	Disc Radial	0.315 in	General Purpose	Formed Leads	330 pF	3000 V
