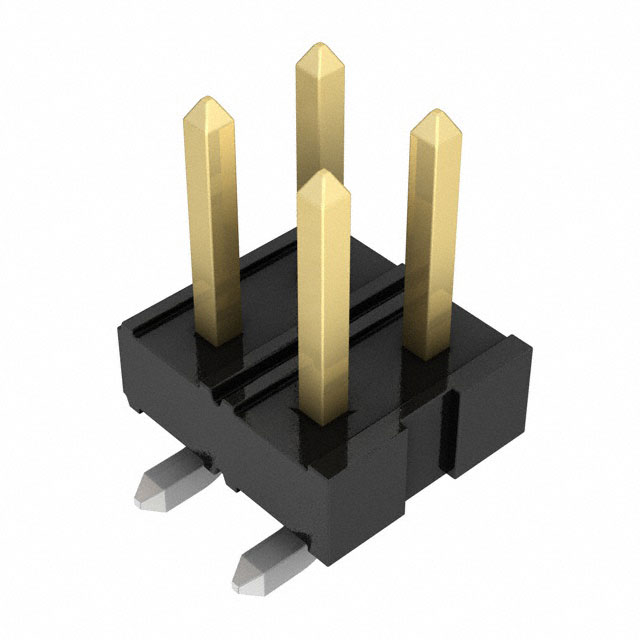

Specification	0877590415

Applications	General Purpose, Telecommunications, Automotive
Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 µin
Contact Length - Mating	0.15 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.059 in
Insulation Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating	0.079 in
Row Spacing - Mating	0.079 in
Shrouding	Unshrouded
Style	Board, Board or Cable
Termination	Solder

087759 Series

Part	Contact Finish Thickness - Mating	Row Spacing - Mating	Shrouding	Insulation Height	Mounting Type	Contact Finish - Post	Material Flammability Rating	Contact Shape	Insulation Material	Insulation Color	Number of Rows	Fastening Type	Features	Contact Type	Pitch - Mating	Number of Positions	Contact Material	Contact Length - Mating	Connector Type	Number of Positions Loaded	Contact Finish - Mating	Style	Termination	Applications	Number of Positions Loaded	Voltage Rating	Voltage Rating (Type)	Current Rating	Operating Temperature (Max)	Operating Temperature (Min)
Molex 0877594850	15 µin	0.079 in	Unshrouded	0.059 in	Surface Mount	Tin	UL94 V-0	Square	Thermoplastic	Black	2	Push-Pull	Board Guide	Male Pin	0.079 in	48	Phosphor Bronze	0.15 in	Breakaway Header	All	Gold	Board Board or Cable	Solder	Automotive General Purpose Telecommunications
Molex 0877598010	15 µin	0.079 in	Unshrouded	0.059 in	Surface Mount	Tin	UL94 V-0	Square	Thermoplastic	Black	2	Push-Pull	Pick and Place	Male Pin	0.079 in	26	Phosphor Bronze	0.15 in	Breakaway Header		Gold	Board Board or Cable	Solder	Automotive General Purpose Telecommunications	25
Molex 0877592874	15 µin	0.079 in	Unshrouded	0.059 in	Surface Mount	Tin	UL94 V-0	Square	Glass Filled Nylon Polyamide (PA)	Black	2	Push-Pull	Pick and Place	Male Pin	0.079 in	28	Phosphor Bronze	0.15 in	Breakaway Header	All	Gold	Board Board or Cable	Solder	Automotive General Purpose Telecommunications
Molex 0877591451	30 µin	0.079 in	Unshrouded	0.059 in	Surface Mount	Tin	UL94 V-0	Square	Thermoplastic	Black	2	Push-Pull	Board Guide	Male Pin	0.079 in	14	Phosphor Bronze	0.15 in	Breakaway Header	All	Gold	Board Board or Cable	Solder	Automotive General Purpose Telecommunications
Molex 0877597644	15 µin	0.079 in	Unshrouded	0.059 in	Surface Mount	Tin	UL94 V-0	Square	Glass Filled Nylon Polyamide (PA)	Black	2	Push-Pull	Board Guide Pick and Place	Male Pin	0.079 in	44	Phosphor Bronze	0.15 in	Breakaway Header	All	Gold	Board Board or Cable	Solder	Automotive General Purpose Telecommunications
Molex 0877590864	15 µin	0.079 in	Unshrouded	0.059 in	Surface Mount	Tin	UL94 V-0	Square	Glass Filled Nylon Polyamide (PA)	Black	2	Push-Pull	Pick and Place	Male Pin	0.079 in	8	Phosphor Bronze	0.15 in	Breakaway Header	All	Gold	Board Board or Cable	Solder	Automotive General Purpose Telecommunications
Molex 0877590614	15 µin	0.079 in	Unshrouded	0.059 in	Surface Mount	Tin	UL94 V-0	Square	Glass Filled Nylon Polyamide (PA)	Black	2	Push-Pull		Male Pin	0.079 in	6	Phosphor Bronze	0.15 in	Breakaway Header	All	Gold	Board Board or Cable	Solder	Automotive General Purpose Telecommunications
Molex 0877590675	30 µin	0.079 in	Unshrouded	0.059 in	Surface Mount	Tin	UL94 V-0	Square	Glass Filled Nylon Polyamide (PA)	Black	2	Push-Pull	Pick and Place	Male Pin	0.079 in	6	Phosphor Bronze	0.15 in	Breakaway Header	All	Gold	Board	Solder			125 V	DC	2 A	125 °C	-55 °C
Molex 0877593214	15 µin	0.079 in	Unshrouded	0.059 in	Surface Mount	Tin	UL94 V-0	Square	Glass Filled Nylon Polyamide (PA)	Black	2	Push-Pull		Male Pin	0.079 in	32	Phosphor Bronze	0.15 in	Breakaway Header	All	Gold	Board Board or Cable	Solder	Automotive General Purpose Telecommunications
Molex 0877594650	15 µin	0.079 in	Unshrouded	0.059 in	Surface Mount	Tin	UL94 V-0	Square	Thermoplastic	Black	2	Push-Pull	Board Guide	Male Pin	0.079 in	46	Phosphor Bronze	0.15 in	Breakaway Header	All	Gold	Board Board or Cable	Solder	Automotive General Purpose Telecommunications
