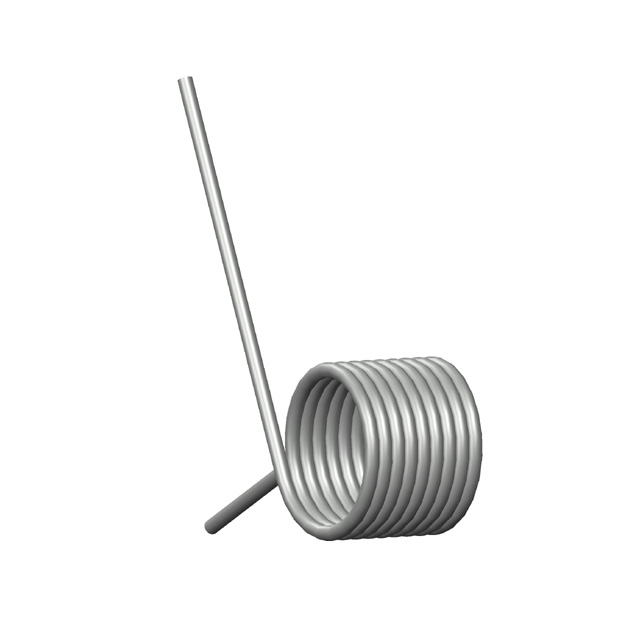

TO-5194LCS

TO-5194LCS

Active
Century Spring Corp

TOR O=.826, W=.070

Find alt
TO-5194LCS

TO-5194LCS

Active
Century Spring Corp

TOR O=.826, W=.070

Find alt

Description

General part information

TO-5194LCS

TOR O=.826, W=.070

Technical Specifications

Parameters and characteristics for this part

SpecificationTO-5194LCS
Deflection Angle239 °
Diameter - Outside0.83 in
FinishNone
Leg Length2 in
Mandrel Diameter0.54 in
MaterialMusic Wire
Number of Coils8.75
Wind DirectionLeft
Wire Diameter0.07 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

TO-5194LCS | Datasheet
