Description
General part information

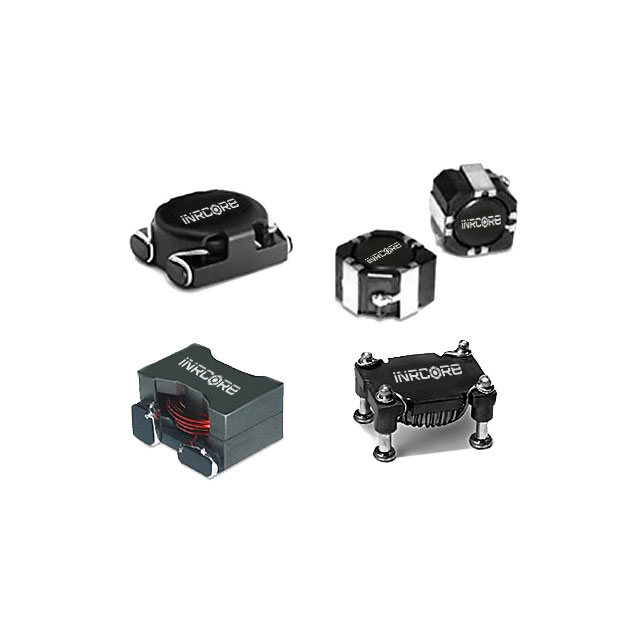

PL8101
7 µH Unshielded Toroidal Inductor 1.4 A 70mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | PL8101 |
|---|---|
| Current Rating | 1.4 A |
| DC Resistance (DCR) (Max) | 70 mOhm |
| Height - Seated (Max) | 0.25 in |
| Inductance | 7 µH |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.4 in |
| Size / Dimension Width | 0.345 in |
| Type | Toroidal |
