Description
General part information

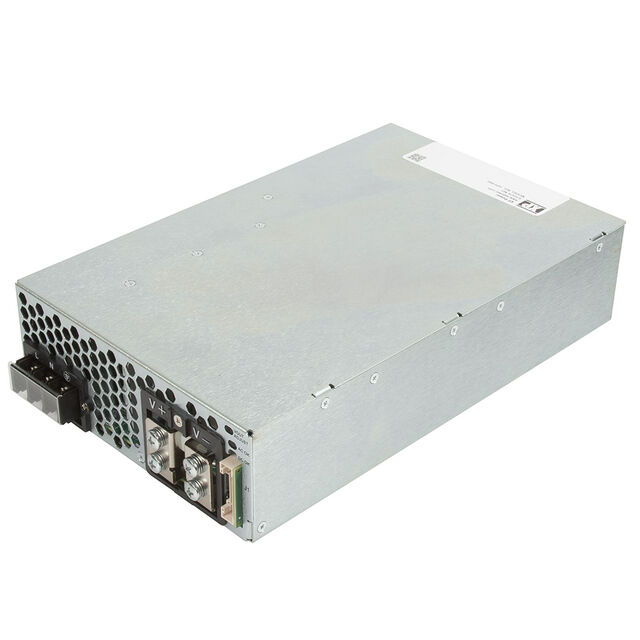

HPF3K0PS48
Enclosed AC DC Converters 1 Output 48V 90 ~ 264 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | HPF3K0PS48 |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | CE, UL, EN, UKCA, CB |
| Current - Output 1 | 62.5 A |
| Efficiency | 92.5 % |
| Features | Remote On/Off, PMBus™, Remote Sense, Universal Input, Adjustable Output, PFC |
| Minimum Load Required | No |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Power (Watts) | 3000 W |
| Size / Dimension Height | 2.5 in |
| Size / Dimension Length | 11 in |
| Size / Dimension Width | 7 in |
| Standard Number | 60601-1, 62368-1 |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Isolation | 4000 Vpk |
| Voltage - Output 1 | 48 V |
