P046-006-LL-30A
ActiveEaton Tripp Lite
HEAVY-DUTY POWER EXTENSION CORD
P046-006-LL-30A
ActiveEaton Tripp Lite
HEAVY-DUTY POWER EXTENSION CORD
Description
General part information
P046-006-LL-30A

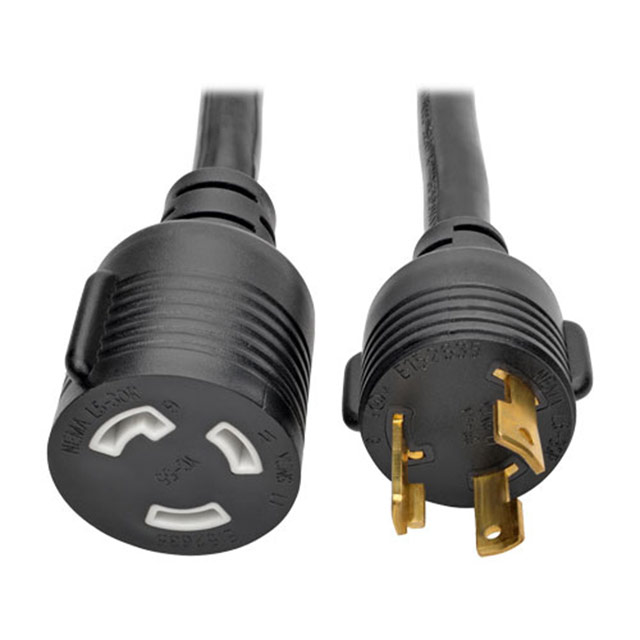

6.00' (1.83m) Power Cord Black NEMA L5-30P To NEMA L5-30R SJT
Technical Specifications
Parameters and characteristics for this part
| Specification | P046-006-LL-30A |
|---|---|
| 1st Connector | NEMA L5-30P |
| 2nd Connector | NEMA L5-30R |
| Approval Agency Marking | cUL, UL |
| Approved Countries | United States, Canada |
| Color | Black |
| Cord Type | SJT |
| Current Rating | 30 A |
| Features | Locking |
| Length | 6 ft |
| Number of Conductors | 3 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -10 °C |
| Shielding | Unshielded |
| Style | Female Sockets (Slots), Male Pins (Blades) |
| Voltage Rating | 125 V |
| Wire Gauge | 10 AWG |
