Description
General part information

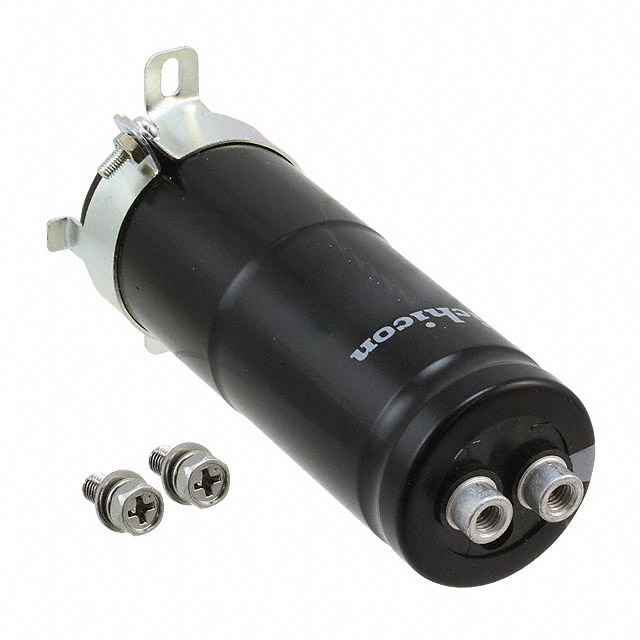

LNT1V223MSE
22000 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 2000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | LNT1V223MSE |
|---|---|
| Applications | General Purpose |
| Capacitance | 22000 µF |
| Height - Seated (Max) | 4.055 in |
| Lead Spacing | 0.5 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can - Screw Terminals, Radial |
| Polarization | Polar |
| Ripple Current | 6.44 A, 5.6 A |
| Size / Dimension Diameter | 1.378 in |
| Tolerance | 20 % |
| Voltage - Rated | 35 V |
