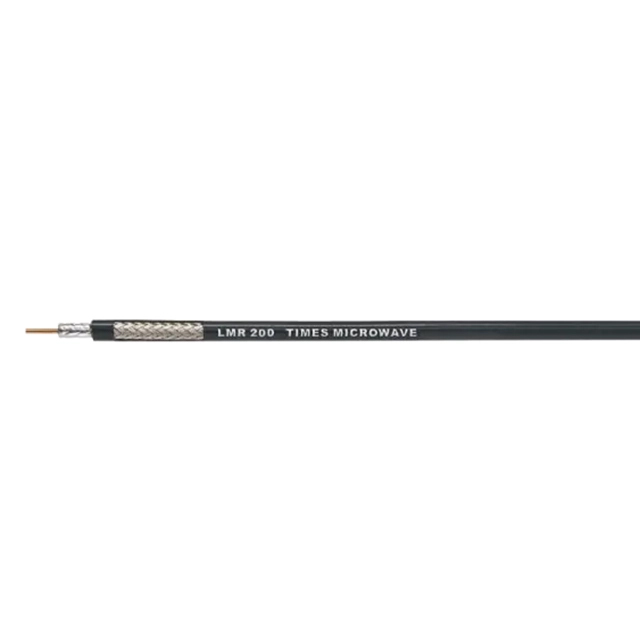

LMR-200-LSZH COAX 200M(656FT)
LMR-200-LSZH-200M
ActiveMcGill Microwave Systems
LMR-200-LSZH COAX 200M(656FT)
Description
General part information
LMR-200-LSZH-200M
Coaxial Cable LMR-200 656.2' (200.00m) 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | LMR-200-LSZH-200M |
|---|---|
| Cable Group | LMR-200 |
| Cable Type | Coaxial |
| Conductor Material | Copper, Bare |
| Conductor Strand | Solid |
| Dielectric Diameter | 0.116 in |
| Dielectric Material | Foam Polyethylene (FPE) |
| Impedance | 50 Ohm |
| Jacket (Insulation) Diameter | 0.195 in |
| Jacket (Insulation) Material | Low Smoke Zero Halogen (LSZH), Polyethylene (PE) |
| Jacket Color | Black |
| Length | 656.2 ft |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Shield Material | Aluminum, Tinned, Copper |
| Shield Type | Braid |
| Velocity of Propagation (VoP) | 83 % |
