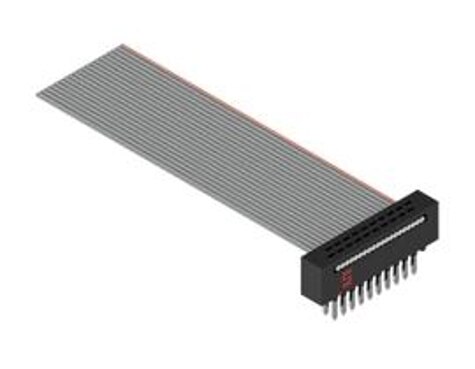

FFMD-08-T-02.30-01-N-R
ActiveSamtec Inc.
RIBBON CABLES / IDC CABLES .050" TIGER EYE IDC RIBBON CABLE ASSEMBLIES, TERMINAL/SOCKET
FFMD-08-T-02.30-01-N-R
ActiveSamtec Inc.
RIBBON CABLES / IDC CABLES .050" TIGER EYE IDC RIBBON CABLE ASSEMBLIES, TERMINAL/SOCKET
Description
General part information
FFMD-08-T-02.30-01-N-R
16 Position Cable Assembly Rectangular Socket to Plug, Reversed 0.192' (58.42mm, 2.30")
Technical Specifications
Parameters and characteristics for this part
| Specification | FFMD-08-T-02.30-01-N-R |
|---|---|
| Cable Termination | IDC |
| Color | Gray, Ribbon |
| Connector Type | Socket to Plug, Reversed |
| Contact Finish | Tin |
| Features | Polarizing Key |
| Length | 0.192 ft |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Pitch - Cable | 0.025 in |
| Pitch - Connector | 0.05 in |
| Shielding | Unshielded |
