CFSA69594P1-B30D3F
ActiveTE Connectivity AMP Connectors

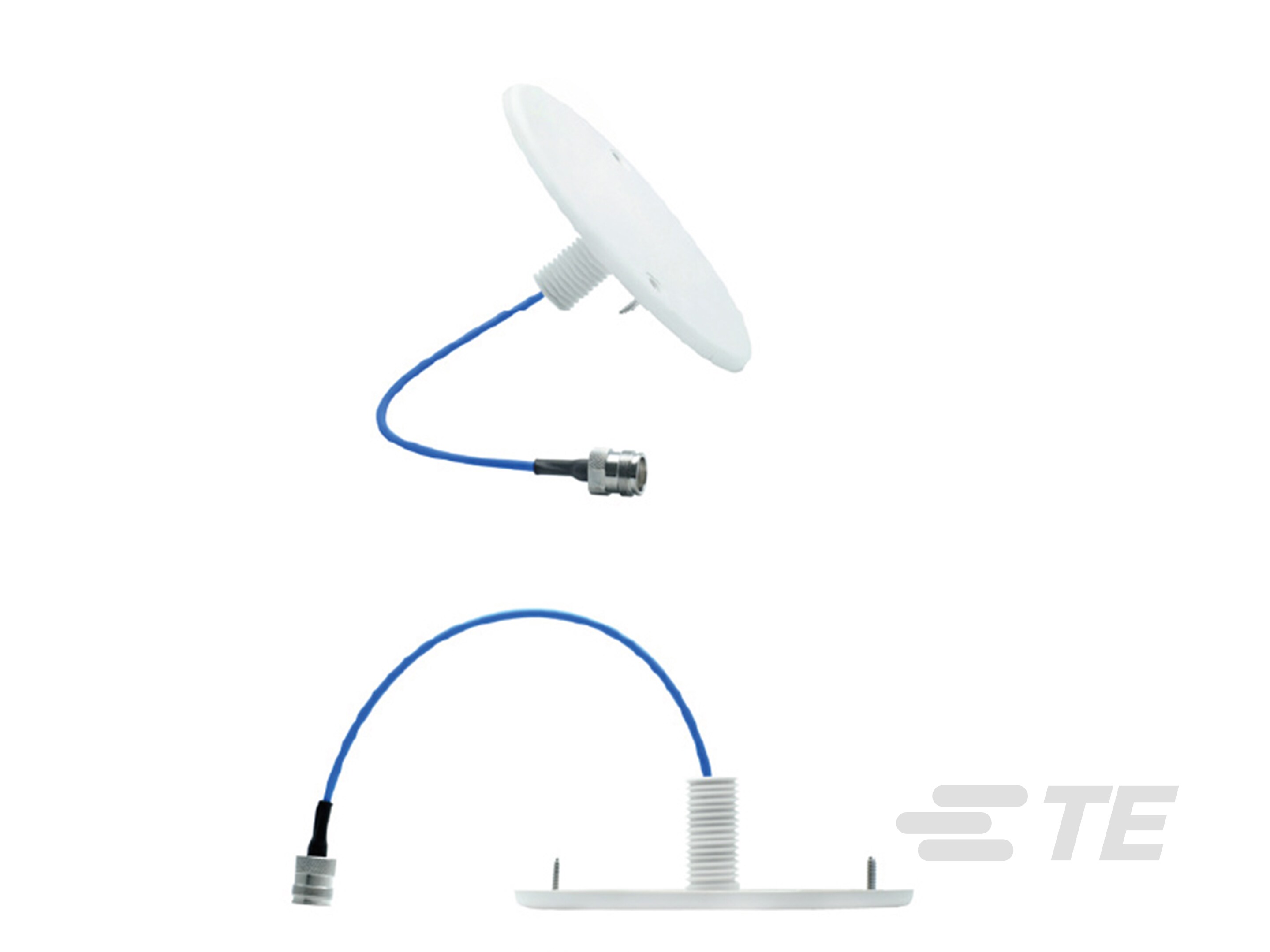

OMNI,CEILING,30CM,NF,
CFSA69594P1-B30D3F
ActiveTE Connectivity AMP Connectors
OMNI,CEILING,30CM,NF,
Description
General part information
CFSA69594P1-B30D3F
Dome/Puck Antenna, Wide Band, 5G / CBRS / Cat-M/NB-IoT, Remote Mount, Wall/Ceiling Mount, 4.3-10, Omnidirectional, Single Port, CFSA Series
Technical Specifications
Parameters and characteristics for this part
| Specification | CFSA69594P1-B30D3F |
|---|---|
| Antenna Type | Module |
| Applications | Bluetooth, Zigbee™, 802.11 a/b/g/n/ac/ad, Wi-Fi, 5G |
| Features | 304.8mm, Cable |
| Frequency (Center/Band) | 761MHz, 920MHz, 859MHz, 3.65GHz, 5.537GHz, 4.1GHz, 2.5GHz, 1.785GHz, 2.055GHz, 1.45GHz, 1.92GHz |
| Frequency (Center/Band) - 1 | 761 MHz |
| Frequency (Center/Band) - 10 | 4.1 GHz |
| Frequency (Center/Band) - 11 | 5.537 GHz |
| Frequency (Center/Band) - 2 | 859 MHz |
| Frequency (Center/Band) - 3 | 920 MHz |
| Frequency (Center/Band) - 4 | 1.45 GHz |
| Frequency (Center/Band) - 5 | 1.785 GHz |
| Frequency (Center/Band) - 6 | 1.92 GHz |
| Frequency (Center/Band) - 7 | 2.055 GHz |
| Frequency (Center/Band) - 8 | 2.5 GHz |
| Frequency (Center/Band) - 9 | 3.65 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 824 MHz |
| Frequency Range (Band 1) Minimum | 698 MHz |
| Frequency Range (Band 10) Maximum | 4.2 GHz |
| Frequency Range (Band 10) Minimum | 4 GHz |
| Frequency Range (Band 11) Maximum | 5.925 GHz |
| Frequency Range (Band 11) Minimum | 5.15 GHz |
| Frequency Range (Band 2) Maximum | 894 MHz |
| Frequency Range (Band 2) Minimum | 824 MHz |
| Frequency Range (Band 3) Maximum | 960 MHz |
| Frequency Range (Band 3) Minimum | 880 MHz |
| Frequency Range (Band 4) Maximum | 1.55 GHz |
| Frequency Range (Band 4) Minimum | 1.35 GHz |
| Frequency Range (Band 5) Maximum | 1.88 GHz |
| Frequency Range (Band 5) Minimum | 1.69 GHz |
| Frequency Range (Band 6) Maximum | 1.99 GHz |
| Frequency Range (Band 6) Minimum | 1.85 GHz |
| Frequency Range (Band 7) Maximum | 2.2 GHz |
| Frequency Range (Band 7) Minimum | 1.91 GHz |
| Frequency Range (Band 8) Maximum | 2.7 GHz |
| Frequency Range (Band 8) Minimum | 2.3 GHz |
| Frequency Range (Band 9) Maximum | 4 GHz |
| Frequency Range (Band 9) Minimum | 3.3 GHz |
| Gain | 3.4 dBi, 4.5 dBi, 4.1 dBi, 5.6 dBi, 4.9 dBi, 5.4 dBi, 4.3 dBi, 3.7 dBi, 3.2 dBi |
| Height (Max) | 0.3 in |
| Mounting Type | Ceiling Mount |
| Number of Bands | 11 |
| Power - Max | 50 VA |
| RF Family/Standard | Cellular |
| Termination Gender | Female |
| Termination Pin Count | 10 pins |
| Termination Pitch | 4.3 mm |
| VSWR | 2.5, 2, 1.7 |
