TF3D107K010C0400
ObsoleteVishay Dale
CAP TANT 100UF 10% 10V 2917
TF3D107K010C0400
ObsoleteVishay Dale
CAP TANT 100UF 10% 10V 2917
Description
General part information
TF3D107K010C0400

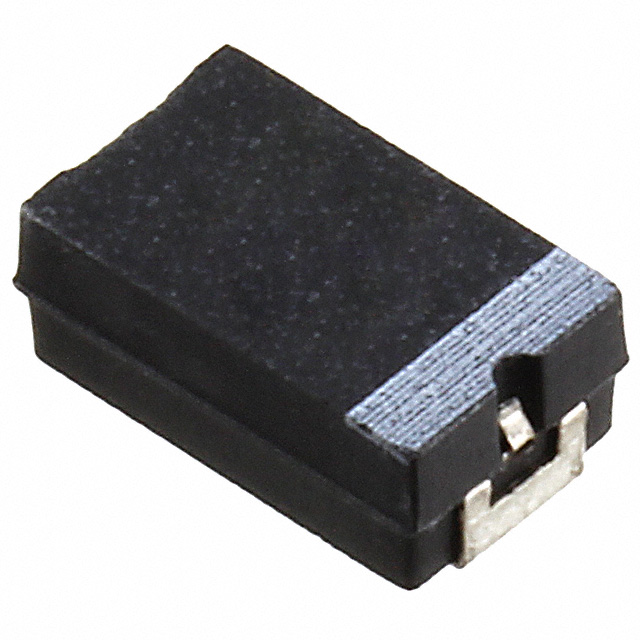

100 µF Molded Tantalum Capacitors 10 V 2917 (7343 Metric) 400mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | TF3D107K010C0400 |
|---|---|
| Capacitance | 100 µF |
| ESR (Equivalent Series Resistance) | 400 mOhm |
| Features | Fail Safe with Built-in Fuse |
| Height - Seated (Max) | 0.122 in |
| Manufacturer Size Code | D |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2917 (7343 Metric) |
| Size / Dimension Length | 0.287 in |
| Size / Dimension Width | 0.169 in |
| Tolerance | 10 % |
| Type | Molded |
| Voltage - Rated | 10 V |
