MCIMX6S4AVM08AC

Active

NXP USA Inc.

I.MX 6 SERIES 32-BIT MPU, ARM CORTEX-A9 CORE, 800MHZ, MAPBGA 624/ TRAY ROHS COMPLIANT: YES

Integrated Circuits (ICs)

MCIMX6S4AVM08AC

Active

NXP USA Inc.

I.MX 6 SERIES 32-BIT MPU, ARM CORTEX-A9 CORE, 800MHZ, MAPBGA 624/ TRAY ROHS COMPLIANT: YES

Specifications Series Pricing CAD Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MCIMX6S4AVM08AC

Additional Interfaces	CAN, MMC/SD/SDIO, I2S, UART, SAI, I2C, SSI, SPI
Bus Width	32 Bit
Co-Processors/DSP	Multimedia, NEON™ SIMD
Core Processor	ARM® Cortex®-A9
Display & Interface Controllers	Keypad, LCD
Ethernet Ports	1
Ethernet Speed Options	100Mbps, 10Mbps, 1000Mbps
Graphics Acceleration	Yes
Mounting Type	Surface Mount
Number of Cores	1 Core
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Package / Case	624-LFBGA
Package Length	21 mm
Package Name	624-MAPBGA
Package Width	21 mm
RAM Controllers	LVDDR3, DDR3, LPDDR2
Security Features	Tamper Detection, Secure Memory, Cryptography, ARM TZ, RTIC, Boot Security, Secure Fusebox, Secure RTC, Secure JTAG
Speed	800 MHz
USB	USB 2.0 + PHY
USB 2.0 PHY Count	4 count
Voltage - I/O (Option 1)	1.8 V
Voltage - I/O (Option 2)	2.5 V
Voltage - I/O (Option 3)	2.8 V
Voltage - I/O (Option 4)	3.3 V

MCIMX6 Series

...

Part	Display & Interface Controllers	Bus Width	Number of Cores	Voltage - I/O (Option 2)	Voltage - I/O (Option 4)	Voltage - I/O (Option 3)	Voltage - I/O (Option 1)	Security Features	Core Processor	Package Length	Package Name	Package Width	Graphics Acceleration	Operating Temperature (Max)	Operating Temperature (Min)	Package / Case	USB 2.0 PHY Count	USB	Mounting Type	RAM Controllers	Co-Processors/DSP	Additional Interfaces	Speed	Ethernet Ports	Ethernet Speed Options	SATA Speed	SATA Interface	SATA Port Count	USB OTG Count
NXP USA Inc. MCIMX6U1AVM08AC	HDMI Keypad LCD LVDS MIPI	32 Bit	2 Core	2.5 V	3.3 V	2.8 V	1.8 V	ARM TZ Boot Security Cryptography RTIC Secure Fusebox Secure JTAG Secure Memory Secure RTC Tamper Detection	ARM® Cortex®-A9	21 mm	624-MAPBGA	21 mm	Yes	125 °C	-40 °C	624-LFBGA	4 count	USB 2.0 + PHY	Surface Mount	DDR3 DDR3L LPDDR2	Multimedia NEON™ MPE	Bluetooth CANbus ESAI I2C I2S MMC/SD/SDIO SPI SSI UART	800 MHz	1	1000Mbps 100Mbps 10Mbps
NXP USA Inc. MCIMX6Q4AVT08ACR	Keypad LCD	32 Bit	4 Core	2.5 V	3.3 V	2.8 V	1.8 V	ARM TZ Boot Security Cryptography RTIC Secure Fusebox Secure JTAG Secure Memory Secure RTC Tamper Detection	ARM® Cortex®-A9	21 mm	624-FCBGA	21 mm	Yes	125 °C	-40 °C	624-FBGA FCBGA	4 count	USB 2.0 + PHY	Surface Mount	DDR3 LPDDR2 LVDDR3	Multimedia NEON™ SIMD	CAN I2C I2S MMC/SD/SDIO SAI SPI SSI UART	852 MHz	1	1000Mbps 100Mbps 10Mbps	3 Gbps	SATA	1
NXP USA Inc. MCIMX6S6AVM08AC	Keypad LCD	32 Bit	1 Core	2.5 V	3.3 V	2.8 V	1.8 V	ARM TZ Boot Security Cryptography RTIC Secure Fusebox Secure JTAG Secure Memory Secure RTC Tamper Detection	ARM® Cortex®-A9	21 mm	624-MAPBGA	21 mm	Yes	125 °C	-40 °C	624-LFBGA	4 count	USB 2.0 + PHY	Surface Mount	DDR3 LPDDR2 LVDDR3	Multimedia NEON™ SIMD	CAN I2C I2S MMC/SD/SDIO SAI SPI SSI UART	800 MHz	1	1000Mbps 100Mbps 10Mbps
NXP USA Inc. MCIMX6QP4AVT8AB	HDMI Keypad LCD LVDS MIPI/DSI Parallel	32 Bit	4 Core	2.5 V	3.3 V	2.8 V	1.8 V	A-HAB ARM TZ CAAM CSU SJC SNVS	ARM® Cortex®-A9	21 mm	624-FCBGA	21 mm	Yes	125 °C	-40 °C	624-FBGA FCBGA	3	USB 2.0 + PHY USB 2.0 OTG + PHY	Surface Mount	DDR3 DDR3L LPDDR2	Multimedia NEON™ SIMD	CAN EBI EMI I2C I2S MMC/SD/SDIO S/PDIF SAI SPI SSI UART	1 GHz	1	1000Mbps 100Mbps 10Mbps	3 Gbps	SATA	1	1 count
NXP USA Inc. MCIMX6Q5EZK08AE	Keypad LCD	32 Bit	4 Core	2.5 V	3.3 V	2.8 V	1.8 V	ARM TZ Boot Security Cryptography RTIC Secure Fusebox Secure JTAG Secure Memory Secure RTC Tamper Detection	ARM® Cortex®-A9	12 mm	569-MAPBGA	12 mm	Yes	105 °C	-20 °C	569-LFBGA	4 count	USB 2.0 + PHY	Surface Mount	DDR3 LPDDR2 LVDDR3	Multimedia NEON™ SIMD	CAN I2C I2S MMC/SD/SDIO SAI SPI SSI UART	800 MHz	1	1000Mbps 100Mbps 10Mbps	3 Gbps	SATA	1
NXP USA Inc. MCIMX6X2EVN10AC	Keypad LCD	32 Bit	2 Core	2.5 V	3.15 V	2.8 V	1.8 V	A-HAB ARM TZ CAAM CSU SNVS System JTAG TVDECODE	ARM® Cortex®-A9 ARM® Cortex®-M4	17 mm	400-MAPBGA	17 mm	Yes	105 °C	-20 °C	400-LFBGA	1 count	USB 2.0 + PHY USB 2.0 OTG + PHY	Surface Mount	DDR3 LPDDR2 LVDDR3	Multimedia NEON™ MPE	AC'97 CAN I2C I2S MMC/SD/SDIO PCIe SAI SPDIF SPI SSI UART	1 GHz 227 MHz	2	1000Mbps 100Mbps 10Mbps				2 count
NXP USA Inc. MCIMX6S5EVM10AC	Keypad LCD	32 Bit	1 Core	2.5 V	3.3 V	2.8 V	1.8 V	ARM TZ Boot Security Cryptography RTIC Secure Fusebox Secure JTAG Secure Memory Secure RTC Tamper Detection	ARM® Cortex®-A9	21 mm	624-MAPBGA	21 mm	Yes	105 °C	-20 °C	624-LFBGA	4 count	USB 2.0 + PHY	Surface Mount	DDR3 LPDDR2 LVDDR3	Multimedia NEON™ SIMD	CAN I2C I2S MMC/SD/SDIO SAI SPI SSI UART	1 GHz	1	1000Mbps 100Mbps 10Mbps
NXP USA Inc. MCIMX6U6AVM10AC	Keypad LCD	32 Bit	2 Core	2.5 V	3.3 V	2.8 V	1.8 V	ARM TZ Boot Security Cryptography RTIC Secure Fusebox Secure JTAG Secure Memory Secure RTC Tamper Detection	ARM® Cortex®-A9	21 mm	624-MAPBGA	21 mm	Yes	125 °C	-40 °C	624-LFBGA	4 count	USB 2.0 + PHY	Surface Mount	DDR3 LPDDR2 LVDDR3	Multimedia NEON™ SIMD	CAN I2C I2S MMC/SD/SDIO SAI SPI SSI UART	1 GHz	1	1000Mbps 100Mbps 10Mbps
NXP USA Inc. MCIMX6QP6AVT8ABR	HDMI Keypad LCD LVDS MIPI/DSI Parallel	32 Bit	4 Core	2.5 V	3.3 V	2.8 V	1.8 V	A-HAB ARM TZ CAAM CSU SJC SNVS	ARM® Cortex®-A9	21 mm	624-FCBGA	21 mm	Yes	125 °C	-40 °C	624-FBGA FCBGA	3	USB 2.0 + PHY USB 2.0 OTG + PHY	Surface Mount	DDR3 DDR3L LPDDR2	Multimedia NEON™ SIMD	CAN EBI EMI I2C I2S MMC/SD/SDIO S/PDIF SAI SPI SSI UART	852 MHz	1	1000Mbps 100Mbps 10Mbps	3 Gbps	SATA	1	1 count
NXP USA Inc. MCIMX6QP6AVT8AB	HDMI Keypad LCD LVDS MIPI/DSI Parallel	32 Bit	4 Core	2.5 V	3.3 V	2.8 V	1.8 V	A-HAB ARM TZ CAAM CSU SJC SNVS	ARM® Cortex®-A9	21 mm	624-FCBGA	21 mm	Yes	125 °C	-40 °C	624-FBGA FCBGA	3	USB 2.0 + PHY USB 2.0 OTG + PHY	Surface Mount	DDR3 DDR3L LPDDR2	Multimedia NEON™ SIMD	CAN EBI EMI I2C I2S MMC/SD/SDIO S/PDIF SAI SPI SSI UART	852 MHz	1	1000Mbps 100Mbps 10Mbps	3 Gbps	SATA	1	1 count

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$	Updated

Digikey	Tray	300	$ 40.63	<1d
Newark	Each	250	$ 29.90	30d+

CAD

3D models and CAD resources for this part

Description

General part information

MCIMX6 Series

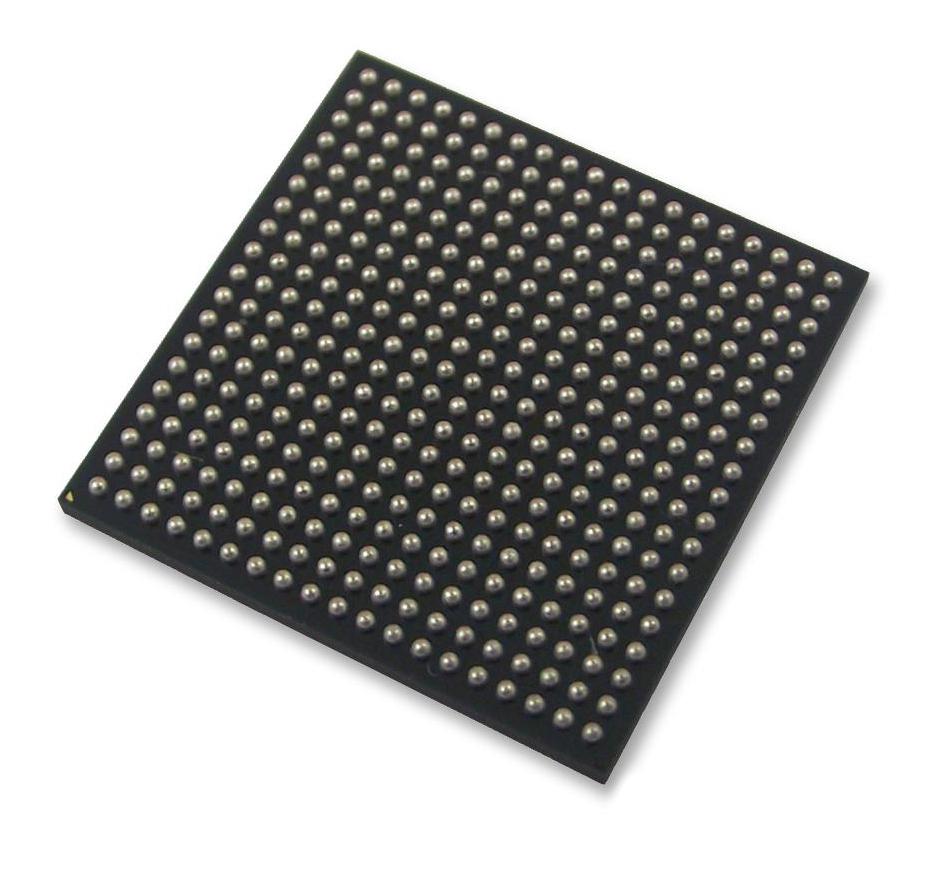

ARM® Cortex®-A9 Microprocessor IC i.MX6S 1 Core, 32-Bit 800MHz 624-MAPBGA (21x21)

Documents

Technical documentation and resources

MCIMX6S4AVM08AC | Datasheet

Datasheet
