934937008
ActiveLumberg Automation
CONN PLUG MALE 4POS GOLD SCREW
934937008
ActiveLumberg Automation
CONN PLUG MALE 4POS GOLD SCREW
Description
General part information
934937008

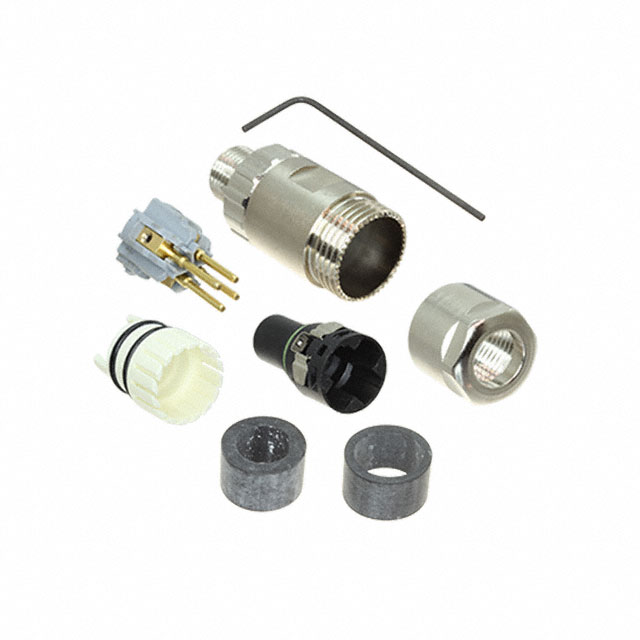

4 (3 + PE) Position Circular Connector Plug, Male Pins Screw
Technical Specifications
Parameters and characteristics for this part
| Specification | 934937008 |
|---|---|
| Applications | Industrial |
| Backshell Material | Copper Zinc |
| Color | Silver |
| Connector Type | Male Pins, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Zinc |
| Current Rating | 16 A |
| Fastening Type | Threaded |
| Features | Backshell |
| Ingress Protection Description | Water Resistant, Dust Tight, Waterproof |
| Ingress Protection IP Rating | IP67, IP65, IP69 |
| Insert Material | PBT, Glass Filled, Polybutylene Terephthalate |
| Material Flammability Rating | UL94 V-2 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | S |
| Plating | Nickel |
| Position Types | PE |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Copper Zinc |
| Shell Size - Insert | M12-4 |
| Shielding | Shielded |
| Termination | Screw |
| Voltage Rating | 630 V |
