2315758-2
ActiveTE Connectivity AMP Connectors
HEADERS & WIRE HOUSINGS 2P MICRO MNL PLUG HS G PNL MT DBL RW V0 G
2315758-2
ActiveTE Connectivity AMP Connectors
HEADERS & WIRE HOUSINGS 2P MICRO MNL PLUG HS G PNL MT DBL RW V0 G
Description
General part information
2315758-2

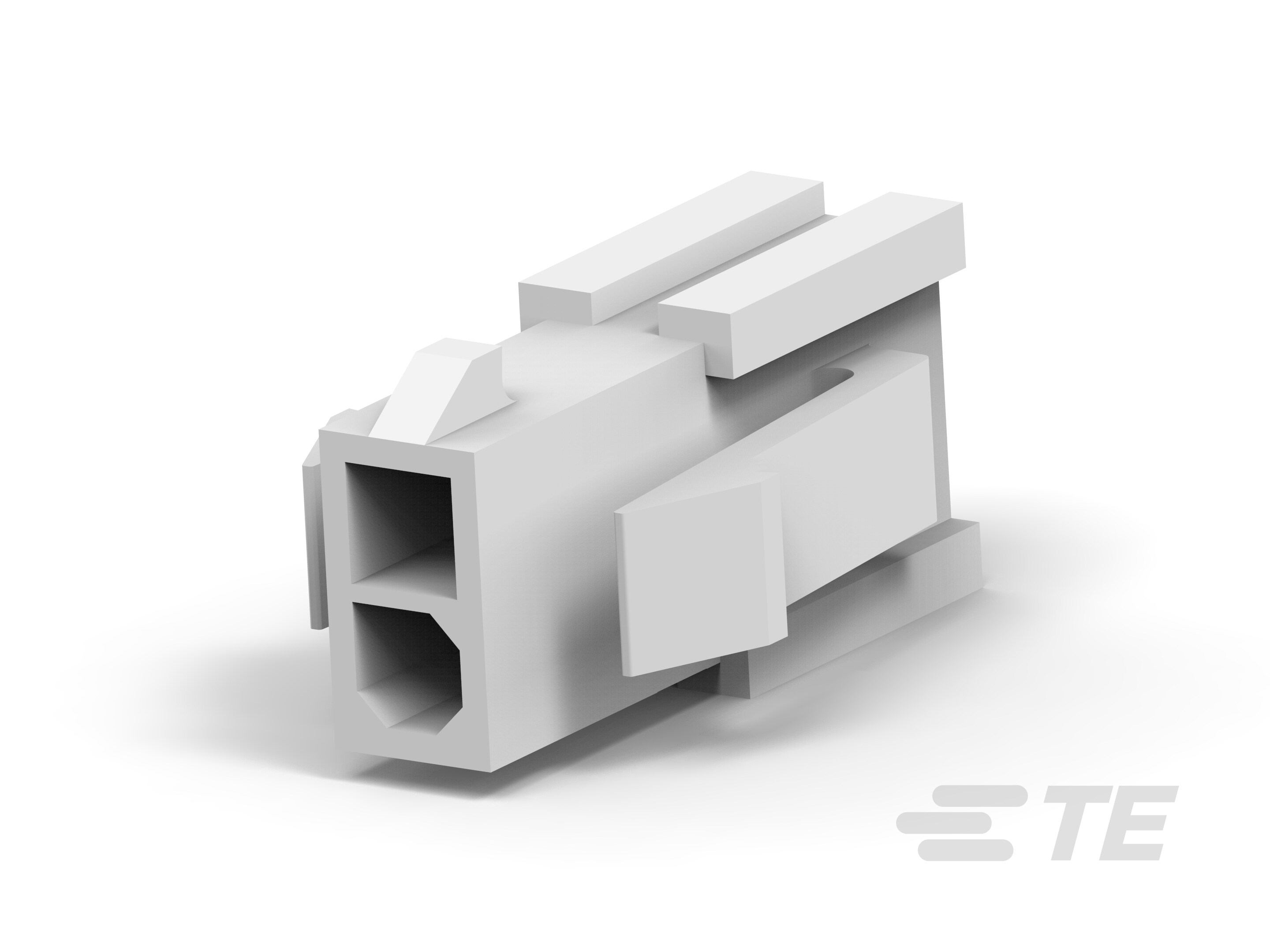

2 Position, Plug, Housing, Crimp, Wire-to-Panel / Wire-to-Wire, UL 94V-0, 3 mm [.118 in] Centerline, 2 Row, 250 VAC, Wire & Cable, Power & Signal
Technical Specifications
Parameters and characteristics for this part
| Specification | 2315758-2 |
|---|---|
| Color | Natural |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Fastening Type | Locking Ramp |
| Features | Glow Wire Compliant |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Panel Mount, Snap-In |
| Number of Positions | 2 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Row Spacing | 0.118 in |
