RG223-BM-BM(QTY:20FT)
ActiveMcGill Microwave Systems
CBL ASSY BNC PLUG TO PLUG 20'
RG223-BM-BM(QTY:20FT)
ActiveMcGill Microwave Systems
CBL ASSY BNC PLUG TO PLUG 20'
Description
General part information
RG223-BM-BM(QTY:20FT)

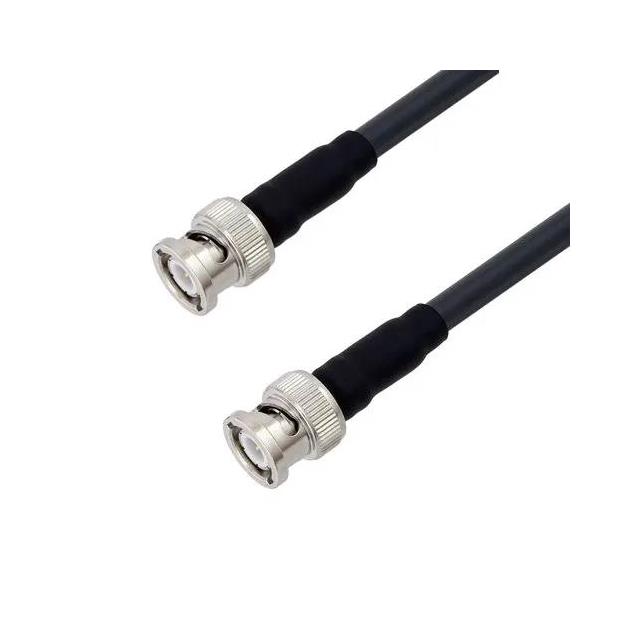

Cable Assembly Coaxial BNC to BNC RG-223 240.0" (6.1m) 20.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | RG223-BM-BM(QTY:20FT) |
|---|---|
| 1st Connector | BNC Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | BNC Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-223, 223, RG |
| Color | Black |
| Frequency - Max | 12.4 GHz |
| Length | 240 in |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -20 °C |
| Overall Impedance | 50 Ohms |
| Style | BNC |
