Description
General part information

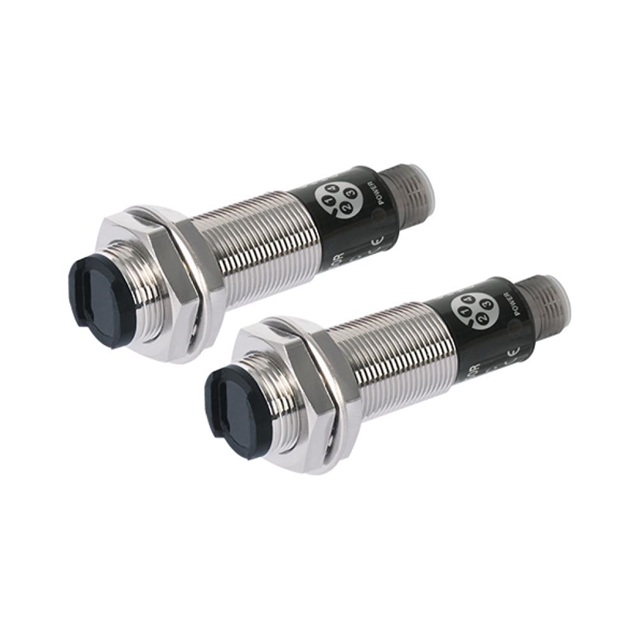

BR20M-TDTD-C
Through-Beam Optical Sensor 787.402" (20m) NPN - Open Collector/Dark-ON
Technical Specifications
Parameters and characteristics for this part
| Specification | BR20M-TDTD-C |
|---|---|
| Adjustment Type | Fixed |
| Connection Method | Connector |
| Ingress Protection | IEC IP66, IEC, IP66 |
| Light Source | Infrared |
| Light Source Wavelength (Infrared) | 850 nm |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -10 °C |
| Output Configuration | NPN - Open Collector, Dark-ON |
| Response Time | 1 ms |
| Sensing Distance | 787.402 " |
| Sensing Method | Through-Beam |
| Voltage - Supply (Maximum) | 24 VAC |
| Voltage - Supply (Minimum) | 12 VDC |
