Description
General part information

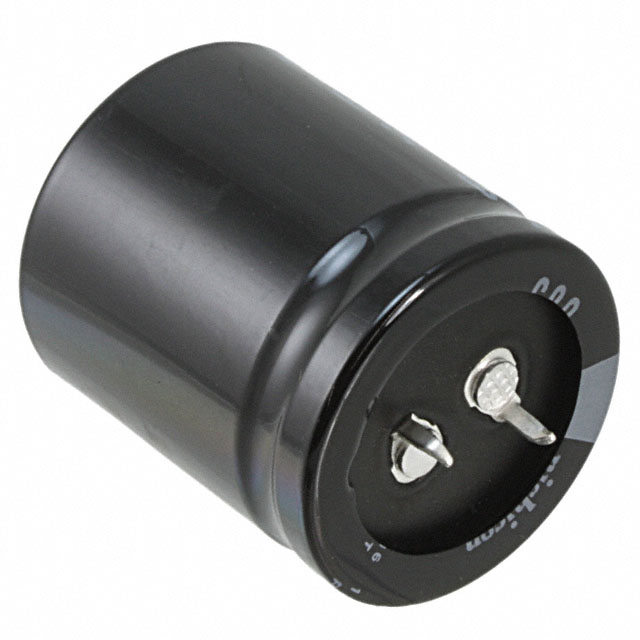

LGR2G181MELB35
180 µF 400 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 10000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | LGR2G181MELB35 |
|---|---|
| Applications | General Purpose |
| Capacitance | 180 µF |
| Height - Seated (Max) | 1.457 in |
| Lead Spacing | 0.394 in |
| Lifetime | 10000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Can - Snap-In, Radial |
| Polarization | Polar |
| Ripple Current | 1.287 A, 900 mA |
| Size / Dimension Diameter | 1.181 in |
| Tolerance | 20 % |
| Voltage - Rated | 400 V |
