EP10WSS12RJBB
ActiveTE Connectivity AMP Connectors

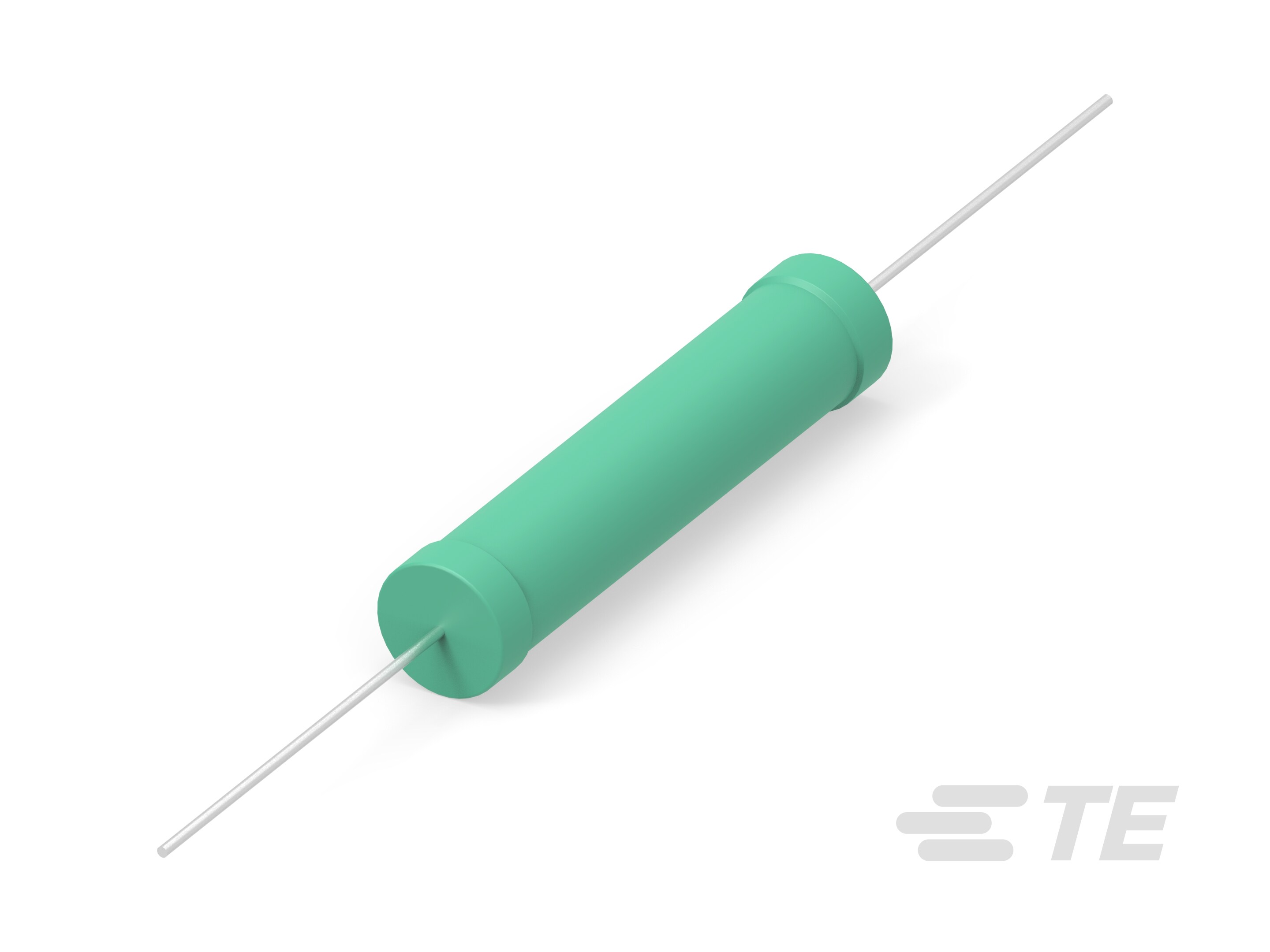

THROUGH HOLE RESISTOR, 12 OHM, EP SERIES, 10 W, ± 5%, AXIAL LEADED, 500 V
EP10WSS12RJBB
ActiveTE Connectivity AMP Connectors
THROUGH HOLE RESISTOR, 12 OHM, EP SERIES, 10 W, ± 5%, AXIAL LEADED, 500 V
Description
General part information
NEOHM EP Series
12 ohm, Through-Hole Power Resistor, Wire Wound, 10 W, 5 %, ±400 ppm/°C, Axial-Leaded, Copper Termination, 39.5 x 8.5 mm, Bag & Box, NEOHM EP
Technical Specifications
Parameters and characteristics for this part
| Specification | EP10WSS12RJBB |
|---|---|
| Composition | Wirewound |
| Features | Pulse Withstanding, Safety, Flame Retardant Coating |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 10 W |
| Resistance | 12 Ohm |
| Size / Dimension Diameter | 0.335 in |
| Size / Dimension Length | 1.575 in |
| Temperature Coefficient | 400 ppm/°C |
| Tolerance | 5 % |
