B82726E6263A040
ActiveEPCOS - TDK Electronics
CMC 600UH 26A 2LN TH
B82726E6263A040
ActiveEPCOS - TDK Electronics
CMC 600UH 26A 2LN TH
Description
General part information
B82726E6263A040

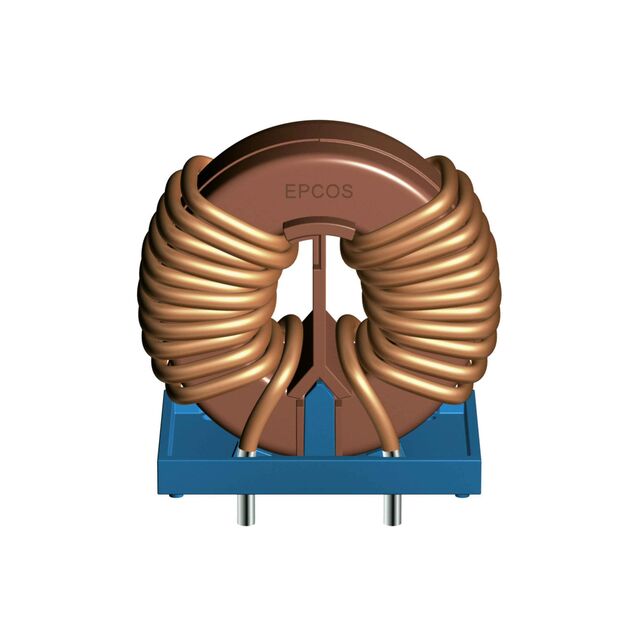

600 µH @ 100 kHz 2 Line Common Mode Choke Through Hole 26A DCR 1.7mOhm (Typ)
Technical Specifications
Parameters and characteristics for this part
| Specification | B82726E6263A040 |
|---|---|
| Approval Agency | UR |
| Current Rating (Max) | 26 A |
| DC Resistance (DCR) (Max) | 1.7 mOhm |
| DC Resistance (DCR) (Typ) | 1.7 mOhm |
| Filter Type | Power Line |
| Height (Max) | 1.772 in |
| Inductance | 600 µH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 4 PC Pin, Vertical |
| Package Leads | 4 Leads |
| Package Name | Vertical |
| Size / Dimension Diameter | 1.89 in |
| Size / Dimension Length | 1.024 in |
| Voltage Rating - AC | 600 VAC |
| Voltage Rating - DC | 1 kV |
