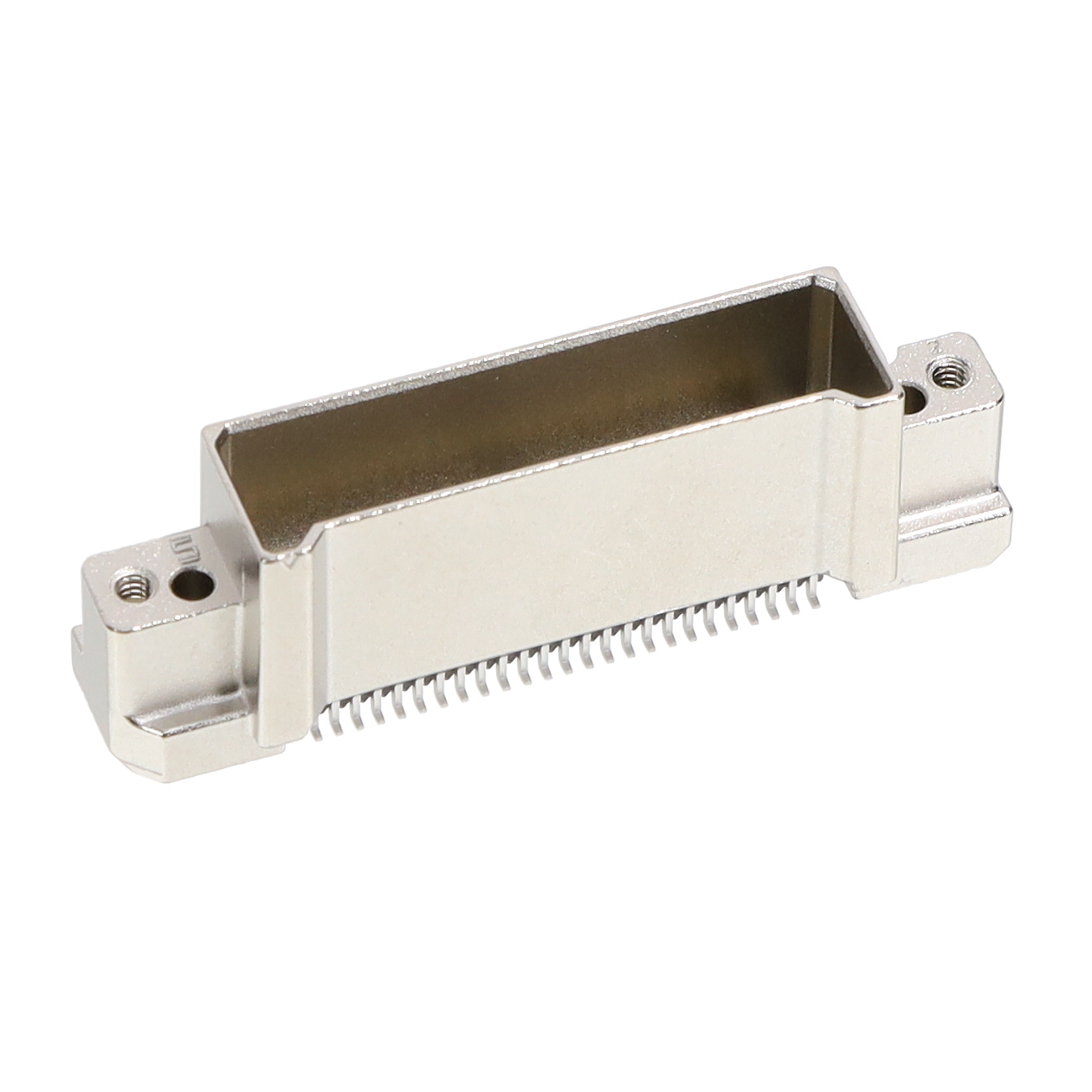

P1M-25-01-S-DV-K-TR
ActiveSamtec Inc.
URSA I/O ULTRA RUGGED BOARD MOUN
P1M-25-01-S-DV-K-TR
ActiveSamtec Inc.
URSA I/O ULTRA RUGGED BOARD MOUN
Description
General part information
P1M-25-01-S-DV-K-TR
Connector Header Surface Mount 50 position 0.039" (1.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | P1M-25-01-S-DV-K-TR |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 30 µin |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Per Contact) | 3.8 A |
| Fastening Type | Push-Pull |
| Features | Pick and Place |
| Insulation Color | Black |
| Insulation Height | 0.579 in |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Mounting Type | Surface Mount |
| Number of Positions | 50 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch - Mating | 0.039 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Cable/Wire, Board |
| Termination | Solder |
| Voltage Rating | 253 VAC |
