1723292
ActivePhoenix Contact

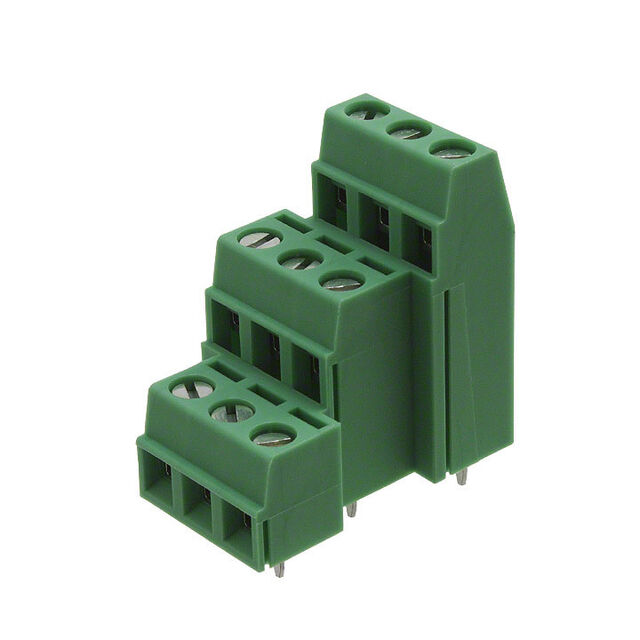

TERM BLK 3P SIDE ENT 5.08MM PCB
1723292
ActivePhoenix Contact
TERM BLK 3P SIDE ENT 5.08MM PCB
Description
General part information
1723292
3 Position Wire to Board Terminal Block Horizontal with Board 0.200" (5.08mm) Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 1723292 |
|---|---|
| Color | Green |
| Current | 10 A |
| Features | Interlocking (Side) |
| Housing Material | Nylon, Polyamide, PA |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 3 |
| Pitch | 5.08 mm |
| Positions Per Level | 3 |
| Screw Thread | M3 |
| Torque - Screw (Maximum) | 0.6 Nm |
| Torque - Screw (Minimum) | 0.5 Nm |
| Voltage | 300 V |
| Wire Gauge (AWG) (Max) | 30 AWG |
| Wire Gauge (AWG) (Min) | 14 AWG |
| Wire Termination | Rising Cage Clamp, Screw |
