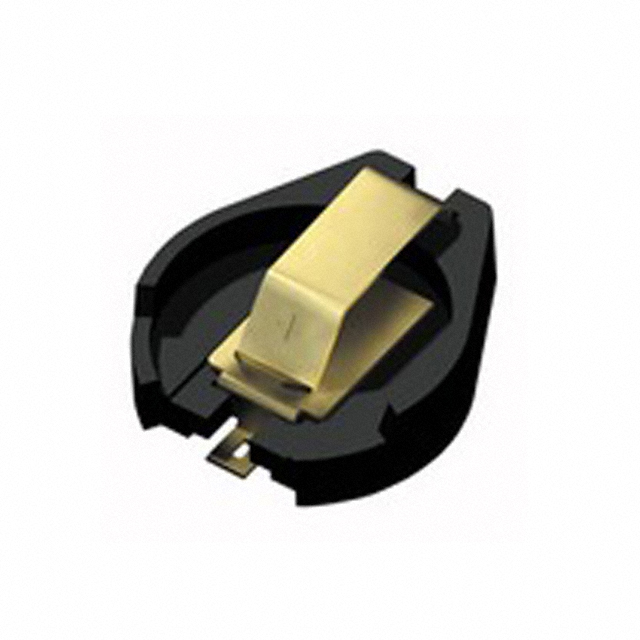

1093
ActiveKeystone Electronics
COIN CELL BATTERY HOLDERS 20MM BATTERY HOLDER DUAL
1093
ActiveKeystone Electronics
COIN CELL BATTERY HOLDERS 20MM BATTERY HOLDER DUAL
Description
General part information
1093
Battery Holder (Open) Coin, 20.0mm 1, 2 Cell SMD (SMT) Tab
Technical Specifications
Parameters and characteristics for this part
| Specification | 1093 |
|---|---|
| Battery Cell Size | Coin |
| Battery Cell Size Dimension | 20 mm |
| Battery Series | 2020 (1), 2016 (2), 2012 (2), 2025 (1) |
| Battery Type | Coin Cell |
| Function | Holder |
| Height Above Board | 0.29 in |
| Mounting Type | Surface Mount, PCB |
| Number of Cells | 1, 2 |
| Number of Cells | 1, 2 |
| Operating Temperature (Max) | 145 °C |
| Operating Temperature (Min) | -50 °C |
| Style | Holder (Open) |
| Termination Style | SMD (SMT) Tab |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
