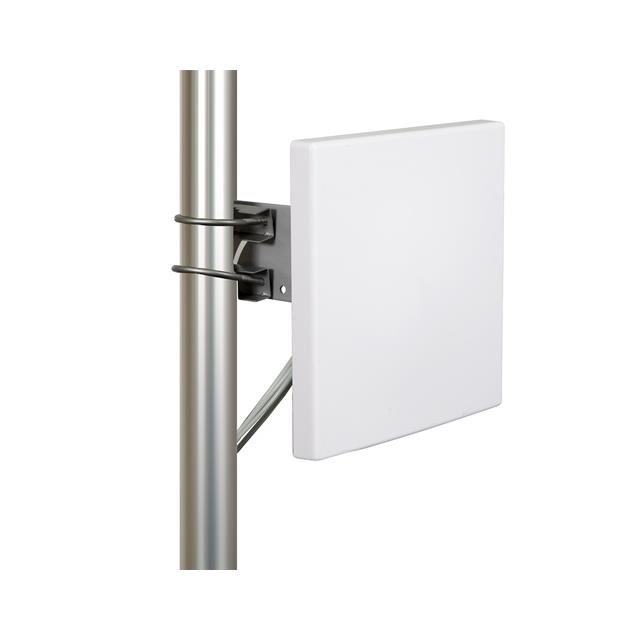

HG2471-06DP-4NF
ActivePasternack
WIFI 6E, 2400-2500/5150-7250 MHZ
HG2471-06DP-4NF
ActivePasternack
WIFI 6E, 2400-2500/5150-7250 MHZ
Description
General part information
HG2471-06DP-4NF
2.45GHz, 6.2GHz 802.11ax, Bluetooth, IoT, Wi-Fi, Zigbee™ Flat Panel RF Antenna 2.4GHz ~ 2.5GHz, 5.15GHz ~ 7.25GHz 6dBi, 6dBi N Type Female (4) Bracket Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | HG2471-06DP-4NF |
|---|---|
| Antenna Type | Flat Panel |
| Applications | Zigbee™, 802.11ax, Wi-Fi, IoT, Bluetooth |
| Features | Cable - 3.048m, Cable - 7.62m, Cable - 1.524m, Cable - 305mm |
| Frequency (Band) | 6.2 GHz |
| Frequency (Center) | 2.45 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 2.5 GHz |
| Frequency Range (Band 1) Minimum | 2.4 GHz |
| Frequency Range (Band 2) Maximum | 7.25 GHz |
| Frequency Range (Band 2) Minimum | 5.15 GHz |
| Gain | 6 dBi |
| Height (Max) | 1.3 in |
| Mounting Type | Bracket Mount |
| Number of Bands | 2 |
| Power - Max | 50 VA |
| RF Family/Standard | 802.15.4, Cellular, Bluetooth |
| Termination | N Type Female, N Type Female (4) |
| Termination Count (N Type Female) | 4 |
| Termination Type | N Type Female |
| VSWR | 2 |
