Description
General part information

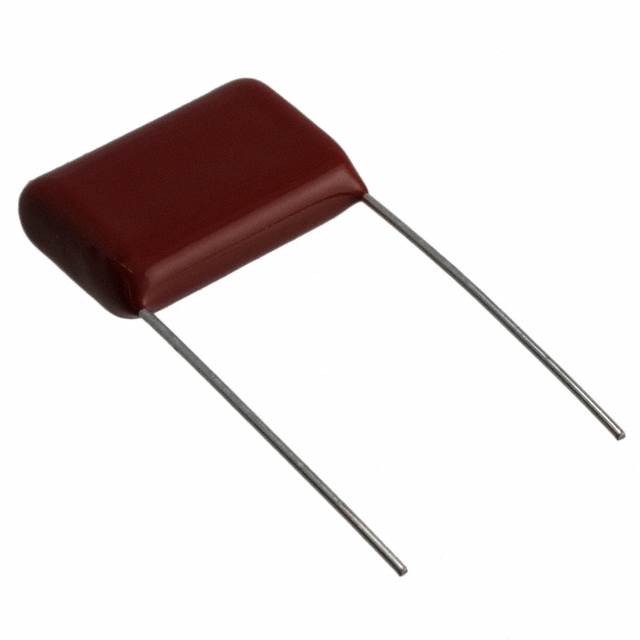

QXK2G105KTP
1 µF Film Capacitor 200V 400V Polyester, Metallized Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | QXK2G105KTP |
|---|---|
| Applications | General Purpose |
| Capacitance | 1 µF |
| Dielectric Material | Polyester, Metallized |
| Height - Seated (Max) | 0.732 in |
| Lead Spacing | 0.886 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial |
| Size / Dimension Length | 1.004 in |
| Size / Dimension Width | 0.343 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 200 Vpk |
| Voltage Rating - DC | 400 V |
