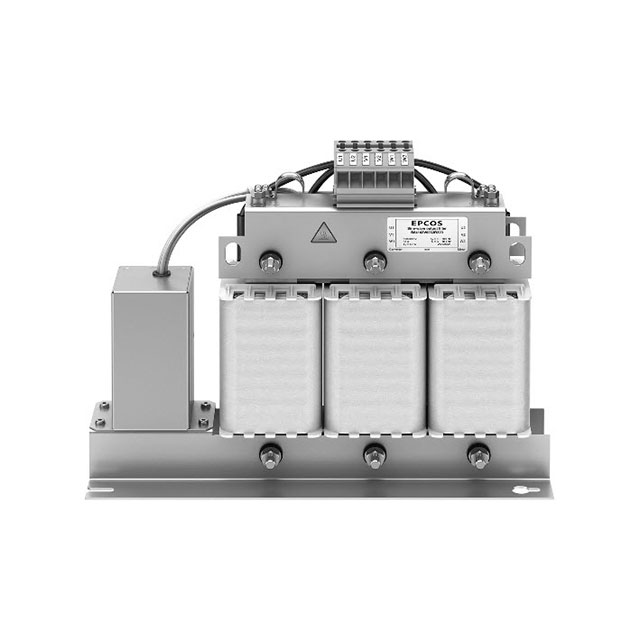

B84143V0033R229
ActiveEPCOS - TDK Electronics
LINE FILTER 33A CHASSIS MOUNT
B84143V0033R229
ActiveEPCOS - TDK Electronics
LINE FILTER 33A CHASSIS MOUNT
Description
General part information
B84143V0033R229
Three Phase (Delta) EMC/EMI Line Filter 33 A 50/60Hz Single Stage Terminal Block
Technical Specifications
Parameters and characteristics for this part
| Specification | B84143V0033R229 |
|---|---|
| Applications | General Purpose |
| Approval Agency | cURus |
| Configuration | Single Stage |
| Current | 33 A |
| Filter Subtype | Delta |
| Filter Type | Three Phase |
| Frequency - Operating | 60Hz, 50Hz |
| Frequency - Operating (Max) | 60 Hz |
| Frequency - Operating (Min) | 50 Hz |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Termination Style | Terminal Block |
| Voltage - Rated AC (Phase to Ground/Neutral) | 300 V |
| Voltage - Rated AC (Phase to Phase) | 520 V |
