2332139-2
ActiveTE Connectivity AMP Connectors

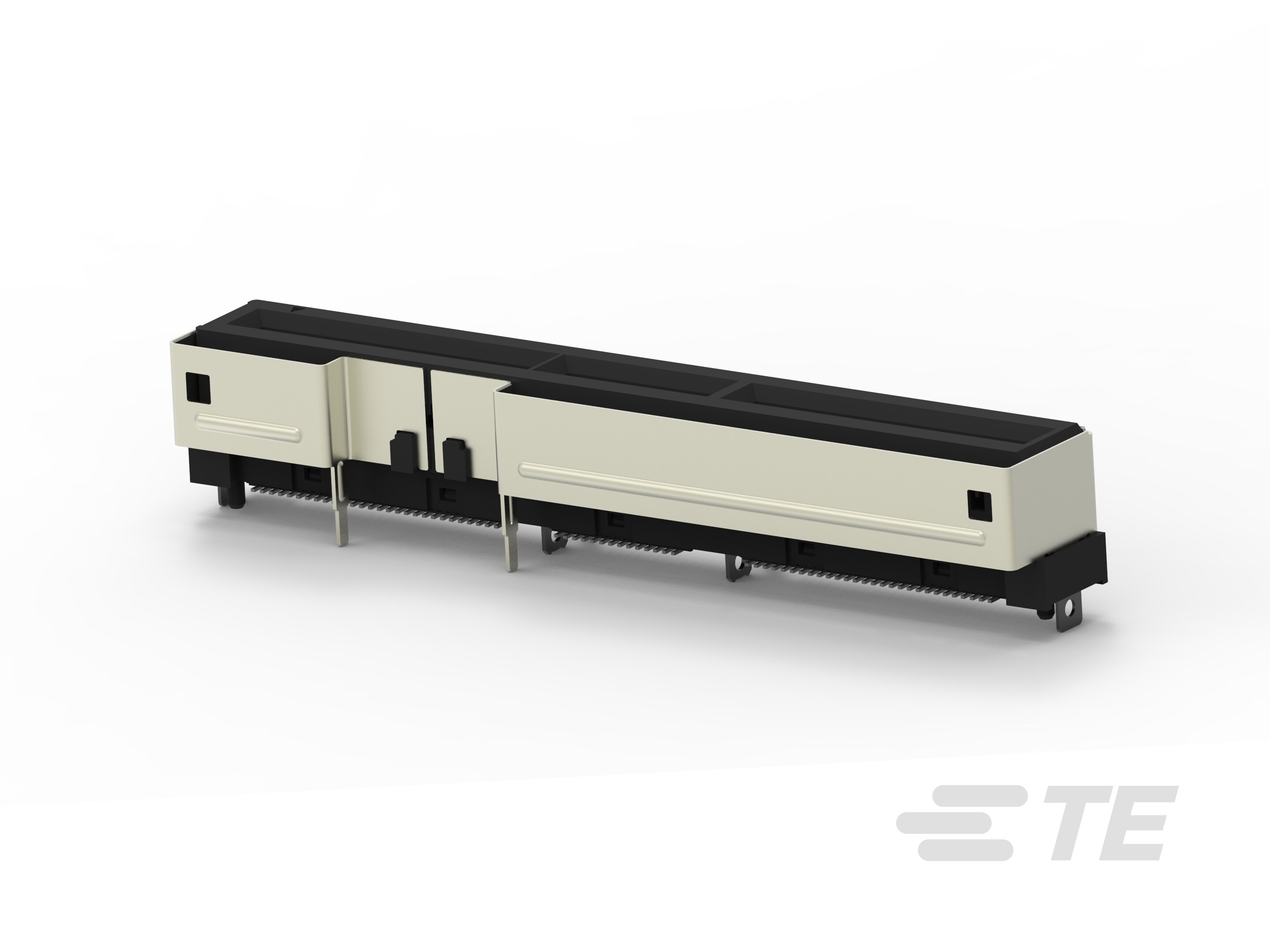

STANDARD CARD EDGE CONNECTORS RECEPT ASSY, 140P VERT, SLIVER 2.0
2332139-2
ActiveTE Connectivity AMP Connectors
STANDARD CARD EDGE CONNECTORS RECEPT ASSY, 140P VERT, SLIVER 2.0
Description
General part information
2332139-2
Sliver for SFF-TA-1002, Cable Plug Assembly, Vertical, Cable-to-Board, 140 Position, Surface Mount, Sliver for SFF-TA-1002, Internal I/O Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | 2332139-2 |
|---|---|
| Card Thickness | 0.062 in |
| Card Type | Non Specified, Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 15 µin |
| Contact Material | Copper Alloy |
| Features | Solder Retention, Pick and Place, Board Guide |
| Gender | Female |
| Mounting Type | Surface Mount |
| Number of Bay | 14 |
| Number of Positions | 28, 140 |
| Number of Row | 28 |
| Number of Rows | 2 |
| Pitch | 0.024 in |
| Read Out | Dual |
| Termination | Solder |
