2484142-1
ActiveTE Connectivity AMP Connectors

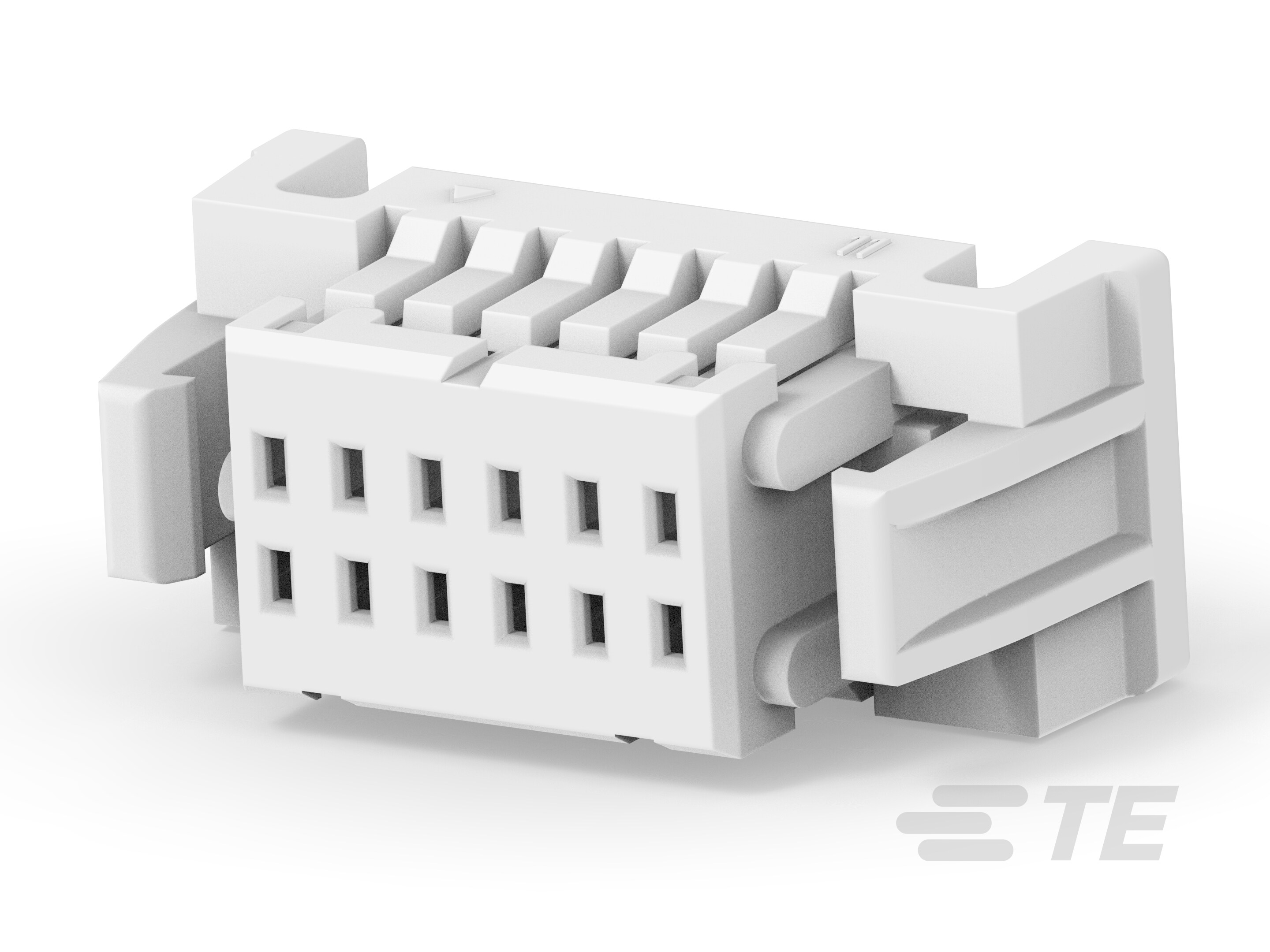

1.0MM P HPI - HSG 85DEG 2X6 POS
2484142-1
ActiveTE Connectivity AMP Connectors
1.0MM P HPI - HSG 85DEG 2X6 POS
Description
General part information
2484142-1
Housing, Receptacle, Wire-to-Board, 12 Position, 1 mm [.039 in] Centerline, Crimp, 2 Row, Natural, Wire & Cable, Power & Signal
Technical Specifications
Parameters and characteristics for this part
| Specification | 2484142-1 |
|---|---|
| Color | Natural |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Pitch | 0.039 in |
| Row Spacing | 0.039 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
