RJH1CM5DPQ-E0#T2
ActiveRenesas Electronics Corporation
IGBT FOR INVERTER APPLICATIONS
Deep-Dive with AI
Search across all available documentation for this part.
RJH1CM5DPQ-E0#T2
ActiveRenesas Electronics Corporation
IGBT FOR INVERTER APPLICATIONS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | RJH1CM5DPQ-E0#T2 | 1CMx Series Series |
|---|---|---|
| Current - Collector (Ic) (Max) | - | 30 A |
| Gate Charge | - | 74 nC |
| Mounting Type | - | Through Hole |
| null | - | |
| Operating Temperature | - | 150 °C |

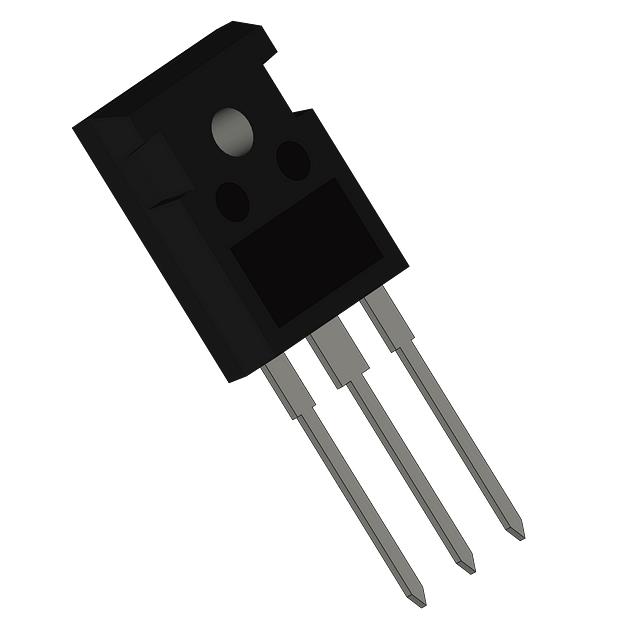

| Package / Case | - | TO-247-3 |
| Power - Max | - | 245 W |
| Reverse Recovery Time (trr) | - | 200 ns |
| Supplier Device Package | - | TO-247 |
| Switching Energy | - | 1.6 - 700 µJ |
| Td (on/off) @ 25°C | - | 40 ns |
| Td (on/off) @ 25°C | - | 100 ns |
| Test Condition | - | 5 - 600 V |
| Vce(on) (Max) @ Vge, Ic | - | 2.7 V |
| Voltage - Collector Emitter Breakdown (Max) | - | 1200 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 32 | $ 9.58 | |
1CMx Series Series
IGBT for Inverter Applications
| Part | Voltage - Collector Emitter Breakdown (Max) [Max] | Current - Collector (Ic) (Max) [Max] | Supplier Device Package | Package / Case | Gate Charge | Test Condition | Reverse Recovery Time (trr) | Vce(on) (Max) @ Vge, Ic | Power - Max [Max] | Operating Temperature | Switching Energy | Mounting Type | Td (on/off) @ 25°C | Td (on/off) @ 25°C |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Renesas Electronics Corporation RJH1CM5DPQ-E0#T2 | ||||||||||||||
Renesas Electronics Corporation RJH1CM5DPQ-E0#T2 | 1200 V | 30 A | TO-247 | TO-247-3 | 74 nC | 5 Ohm, 15 V, 15 A, 600 V | 200 ns | 2.7 V | 245 W | 150 °C | 1.6 mJ, 700 µJ | Through Hole | 40 ns | 100 ns |
Renesas Electronics Corporation RJH1CM7DPQ-E0#T2 | ||||||||||||||
Renesas Electronics Corporation RJH1CM6DPQ-E0#T2 |
Description
General part information
1CMx Series Series
IGBT product series for inverter for UPS, motor control, solar power generation, and welding applications, recommended for 1 to 50 kHz frequencies, and guaranteed against short circuit.
