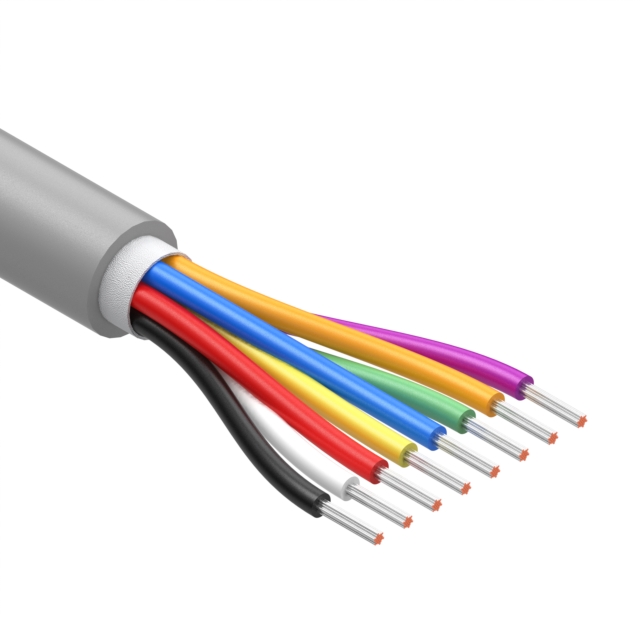

Specification	30-02754

Cable Type	Conductor, Multi
Conductor Insulation	High Density Polyethylene (HDPE)
Conductor Material	Tinned, Copper
Conductor Strand Count	26
Conductor Strand Diameter	0.0031 in
Features	Biological Compatibility
Jacket (Insulation) Diameter	0.169 in
Jacket (Insulation) Material	Thermoplastic Polyurethane (TPU)
Jacket (Insulation) Thickness	0.0236 in
Jacket Color	Gray
Length	502 ft
Number of Conductors	8
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-40 °C
Ratings	10993, ISO
Voltage	150 V
Wire Gauge	26 AWG
