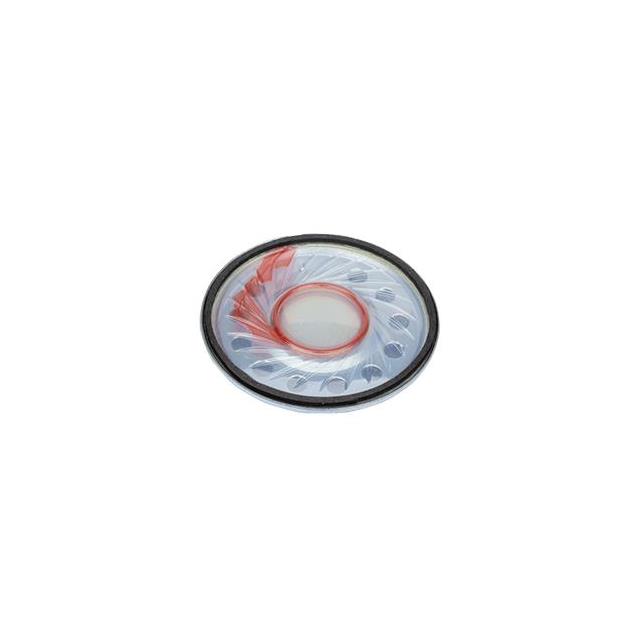

CDS-3646-16-SP
ActiveSame Sky (Formerly CUI Devices)
SPEAKER 16OHM 1W TOP PORT 91DB
CDS-3646-16-SP
ActiveSame Sky (Formerly CUI Devices)
SPEAKER 16OHM 1W TOP PORT 91DB
Description
General part information
CDS-3646-16-SP
16 Ohms General Purpose Speaker 1 W 400 Hz ~ 20 kHz Top Round
Technical Specifications
Parameters and characteristics for this part
| Specification | CDS-3646-16-SP |
|---|---|
| Distortion Rating | 5 % |
| Distortion Rating Power | 1 W |
| Efficiency - dBA | 91 dBA |
| Efficiency - Testing Length | 100 mm |
| Efficiency - Testing Power | 100 mW |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 500 Hz |
| Frequency Range (Max) | 20 kHz |
| Frequency Range (Min) | 400 Hz |
| Height - Seated (Max) | 0.181 in |
| Impedance | 16 Ohms |
| Material - Cone | Polyethylene Naphthalate (PEN) |
| Material - Magnet | Nd-Fe-B |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Port Location | Top |
| Power - Max | 1.5 W |
| Power - Rated | 1 VA |
| Shape | Round |
| Size / Dimension Diameter | 1.417 in |
| Technology | Magnetic |
| Termination | Solder Pads |
| Type | General Purpose |
