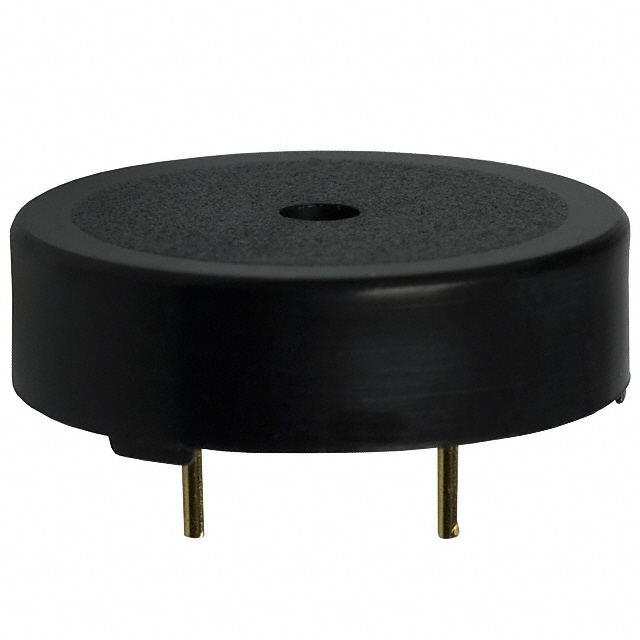

Specification	CEP-1112

Current - Supply	11 mA
Driver Circuitry	Externally Driven, Transducer
Height - Seated (Max)	0.307 in
Input Type	Peak-Peak Signal
Mounting Type	Through Hole
Operating Mode	Single Tone
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-30 °C
Port Location	Top
Size / Dimension Diameter	0.945 in
Sound Pressure Level (SPL)	92 dB
Technology	Piezo
Termination	PC Pins
Voltage - Rated	10 V
Voltage Range (Max)	30 VDC
