165298
ActiveTE Connectivity AMP Connectors
CONN RING TONG 16-14AWG M5 SOLIS
165298
ActiveTE Connectivity AMP Connectors
CONN RING TONG 16-14AWG M5 SOLIS
Description
General part information
165298

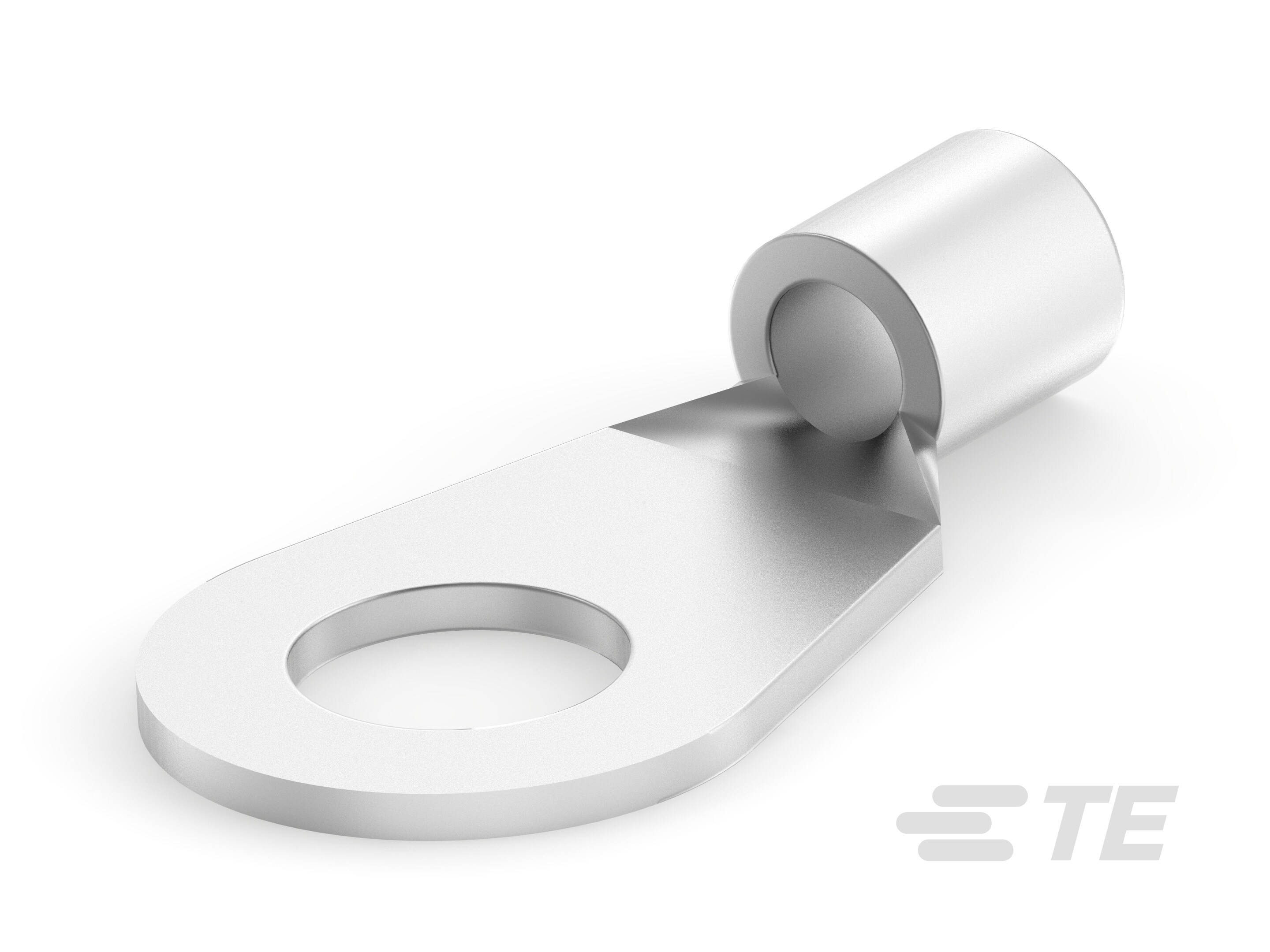

Closed Ring Tongue Terminal, 16 – 14 AWG, M5 Stud, 5.3 mm [.209 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, Uninsulated
Technical Specifications
Parameters and characteristics for this part
| Specification | 165298 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | Serrated Termination |
| Insulation | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | M5 Stud, M5 |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.031 in |
| Width - Outer Edges | 0.394 in |
| Wire Gauge (AWG) (Max) | 16 AWG |
| Wire Gauge (AWG) (Min) | 14 AWG |
