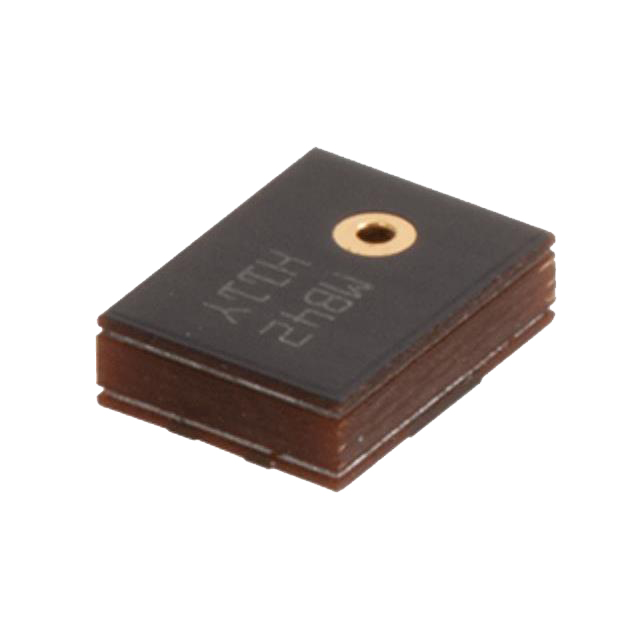

CMM-3526AT-38165-TR

CMM-3526AT-38165-TR

Active
Same Sky (Formerly CUI Devices)

MIC OMNI-DIRECTIONAL 200OHM -38DB 1.8V RECTANGLE SOLDER PAD

Find alt
CMM-3526AT-38165-TR

CMM-3526AT-38165-TR

Active
Same Sky (Formerly CUI Devices)

MIC OMNI-DIRECTIONAL 200OHM -38DB 1.8V RECTANGLE SOLDER PAD

Find alt

Description

General part information

CMM-3526AT-38165-TR

100 Hz ~ 10 kHz Analog Microphone MEMS (Silicon) 1.5 V ~ 3.6 V Omnidirectional (-38dB ±1dB) Solder Pads

Technical Specifications

Parameters and characteristics for this part

SpecificationCMM-3526AT-38165-TR
Current - Supply170 µA
DirectionOmnidirectional
Frequency Range (Max)10 kHz
Frequency Range (Min)100 Hz
Height (Max)0.039 in
Impedance200 Ohm
Output TypeAnalog
Port LocationTop
S/N Ratio65 dB
Sensitivity (Nominal)-38 dB
Sensitivity Tolerance1 dB
ShapeRectangular
Size / Dimension Length0.138 in
Size / Dimension Width0.104 in
TerminationSolder Pads
TypeMEMS (Silicon)
Voltage - Rated1.8 VAC
Voltage Range (Max)3.6 V
Voltage Range (Min)1.5 V
