EM210
ActiveBopla Enclosures
BOX PLASTIC GRAY 3.23"L X 3.15"W
EM210
ActiveBopla Enclosures
BOX PLASTIC GRAY 3.23"L X 3.15"W
Description
General part information
EM210

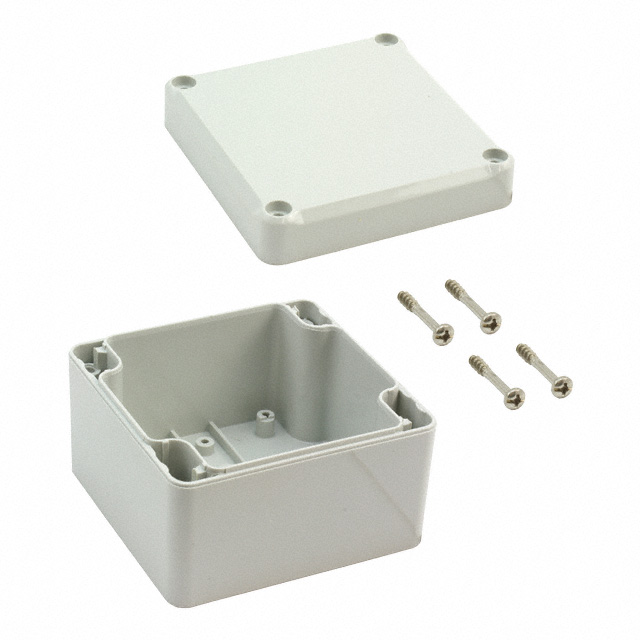

Box Plastic, Polycarbonate Gray Cover Included 3.228" L x 3.150" W (82.00mm x 80.00mm) X 2.244" (57.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | EM210 |
|---|---|
| Area (L x W) | 10.3 in² |
| Color | Gray |
| Container Type | Box |
| Design | Cover Included |
| Features | PCB Supports |
| Height | 2.244 in |
| Material | Polycarbonate (PC), Plastic, Polycarbonate |
| Material Flammability Rating | UL94 V-2 |
| Ratings | NEMA 12, IP65 |
| Size / Dimension Length | 3.228 in |
| Size / Dimension Width | 3.15 in |
| Thickness | 0.118 in |
| Weight | 0.269 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
