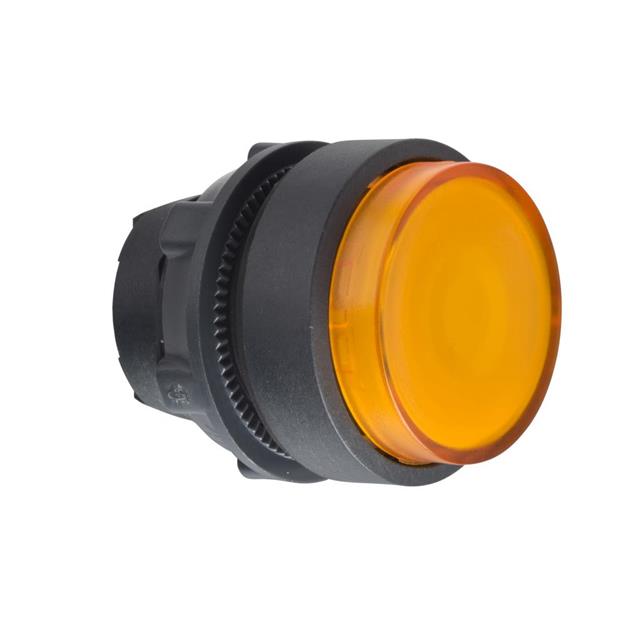

ZB5AW15
ActiveSCHNEIDER ELECTRIC
ILLUM EXTENDED MOMENTARY FOR BA9 YELLOW ROHS COMPLIANT: YES
ZB5AW15
ActiveSCHNEIDER ELECTRIC
ILLUM EXTENDED MOMENTARY FOR BA9 YELLOW ROHS COMPLIANT: YES
Description
General part information
ZB5AW15
Configurable Switch Body Pushbutton, Round Illuminated
Technical Specifications
Parameters and characteristics for this part
| Specification | ZB5AW15 |
|---|---|
| Actuator Type | Pushbutton, Round |
| Compatible Series | Harmony XB5, Schneider |
| Illumination | Illuminated |
| Panel Cutout Dimension | 22 mm |
| Panel Cutout Shape | Round |
| Requires | Illumination Source, Contact Block(s) |
| Type | Momentary |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
