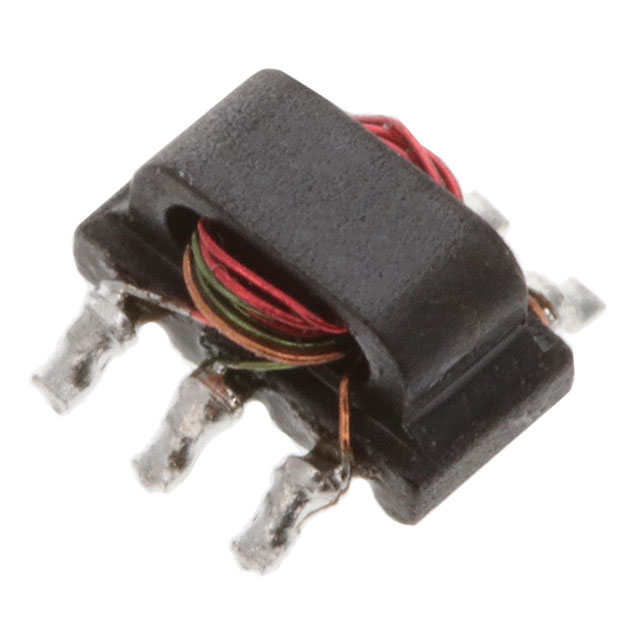

BU05MC08T
ObsoleteTaiyo Yuden
COMMON MODE CHOKES TRIPLE 700OHM 60MHZ 0.5A 0.11OHM DCR SMD T/R
BU05MC08T
ObsoleteTaiyo Yuden
COMMON MODE CHOKES TRIPLE 700OHM 60MHZ 0.5A 0.11OHM DCR SMD T/R
Description
General part information
BU05MC08T
3 Line Common Mode Choke Surface Mount 700 Ohms @ 60 MHz 500mA DCR 110mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | BU05MC08T |
|---|---|
| Current Rating (Max) | 500 mA |
| DC Resistance (DCR) (Max) | 110 mOhm |
| Filter Type | Signal Line |
| Height (Max) | 0.114 in |
| Impedance | 700 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 3 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | 6-SMD, Gull Wing |
| Size / Dimension Length | 0.102 in |
| Size / Dimension Width | 0.197 in |
| Voltage Rating - DC | 50 V |
