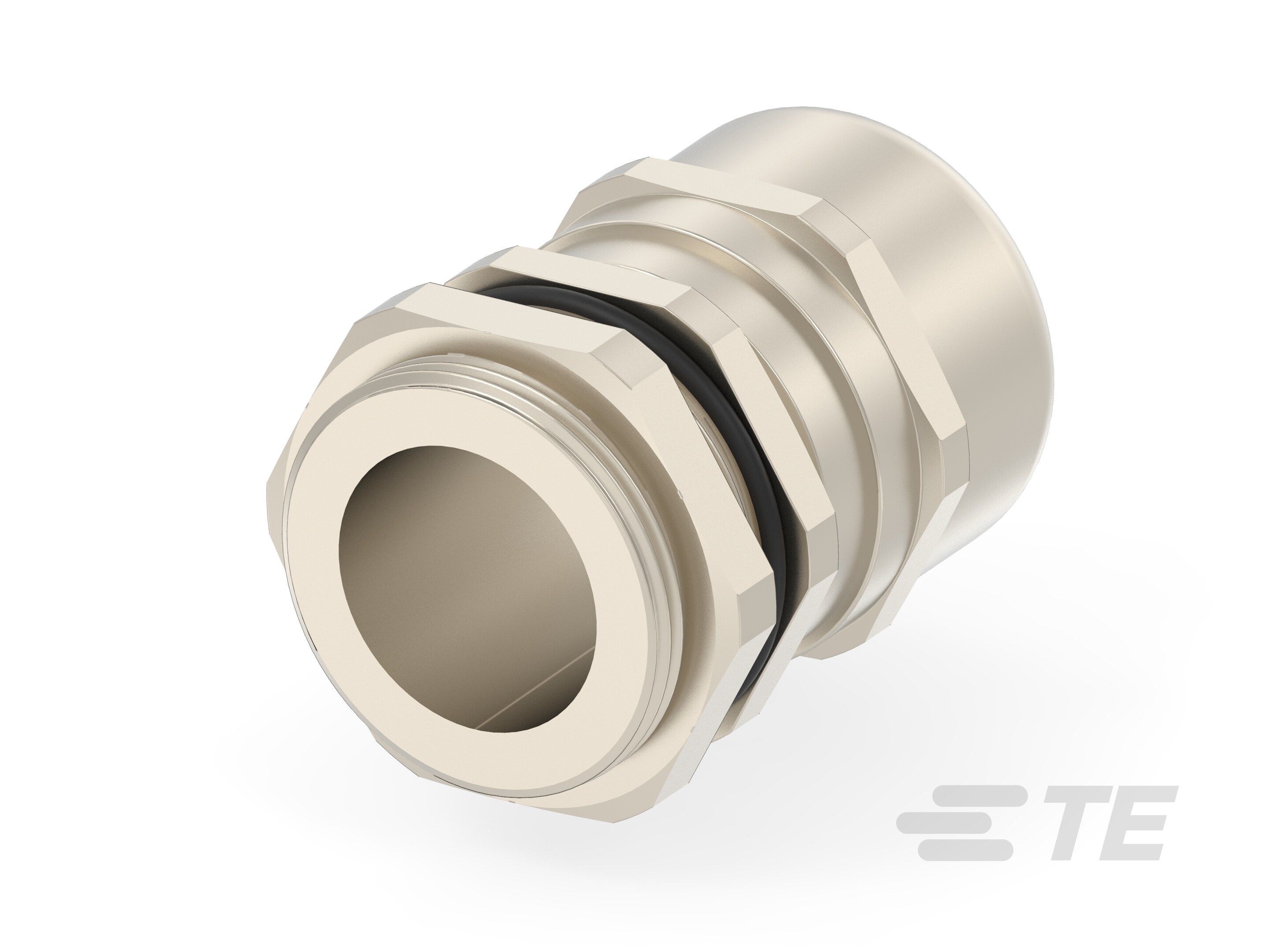

Specification	1SNG625034R0000

Ingress Protection Description	Dust Tight, Waterproof
Ingress Protection IP Rating	IP68
Material	Polyamide (PA6), Nickel Plated, Nylon 6, Brass
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-20 °C
Outside Cable Diameter (Max)	0.827 in
Outside Cable Diameter (Min)	0.591 in
Panel Hole Size	1.476 in
Thread Diameter	32 mm
Thread Length	0.591 in
Thread Pitch	1.5 mm
Type	Cable Gland
