PE3C6208-12
ActivePasternack
CBL ASSY SMA PLUG TO PLUG 12"
PE3C6208-12
ActivePasternack
CBL ASSY SMA PLUG TO PLUG 12"
Description
General part information
PE3C6208-12

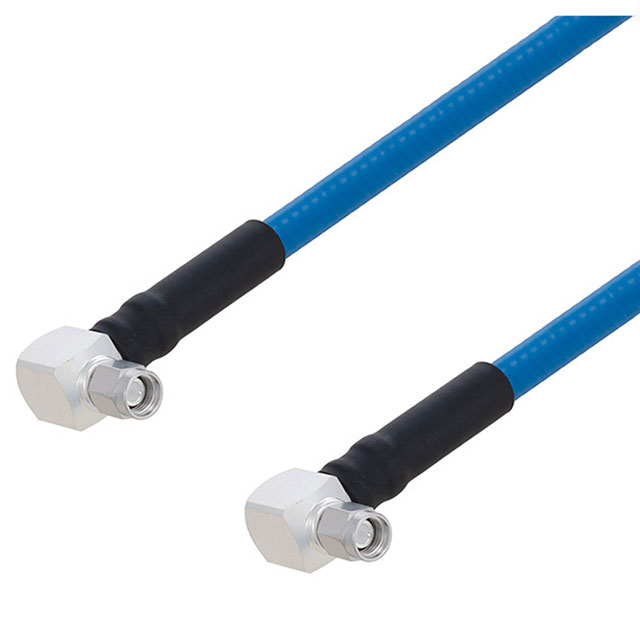

Cable Assembly Coaxial SMA to SMA 12.00" (304.80mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | PE3C6208-12 |
|---|---|
| 1st Connector | SMA Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | Right Angle, SMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Color | Blue |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 5.8 GHz |
| Length | 12 in |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA |
