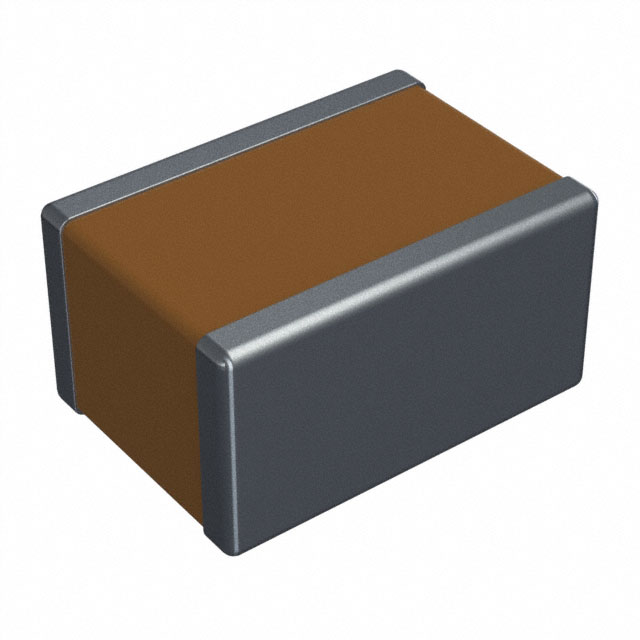

1825GC153MAZ1A
ActiveKYOCERA AVX
SMD MULTILAYER CERAMIC CAPACITOR, FLEXITERM®, 0.015 ΜF, 2 KV, 1825 [4564 METRIC], ± 20%, X7R
1825GC153MAZ1A
ActiveKYOCERA AVX
SMD MULTILAYER CERAMIC CAPACITOR, FLEXITERM®, 0.015 ΜF, 2 KV, 1825 [4564 METRIC], ± 20%, X7R
Description
General part information
1825GC153MAZ1A
0.015 µF ±20% 2000V (2kV) Ceramic Capacitor X7R 1825 (4564 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | 1825GC153MAZ1A |
|---|---|
| Applications | SMPS Filtering, Boardflex Sensitive |
| Capacitance | 0.015 µF |
| Features | Soft Termination, High Voltage |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 1825 (4564 Metric) |
| Size / Dimension Length | 0.181 in |
| Size / Dimension Width | 0.248 in |
| Temperature Coefficient | X7R |
| Thickness (Max) | 0.134 in |
| Tolerance | 20 % |
| Voltage - Rated | 2000 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
