7-Port,4x 5G/LTE,2x WIFI,GNSS,WHT-L000434-09

L000434-09

Active
TE Connectivity AMP Connectors

RF ANTENNA, 6 TO 7.125GHZ, RHCP/LINEAR ROHS COMPLIANT: YES

Find alt

Description

General part information

L000434-09

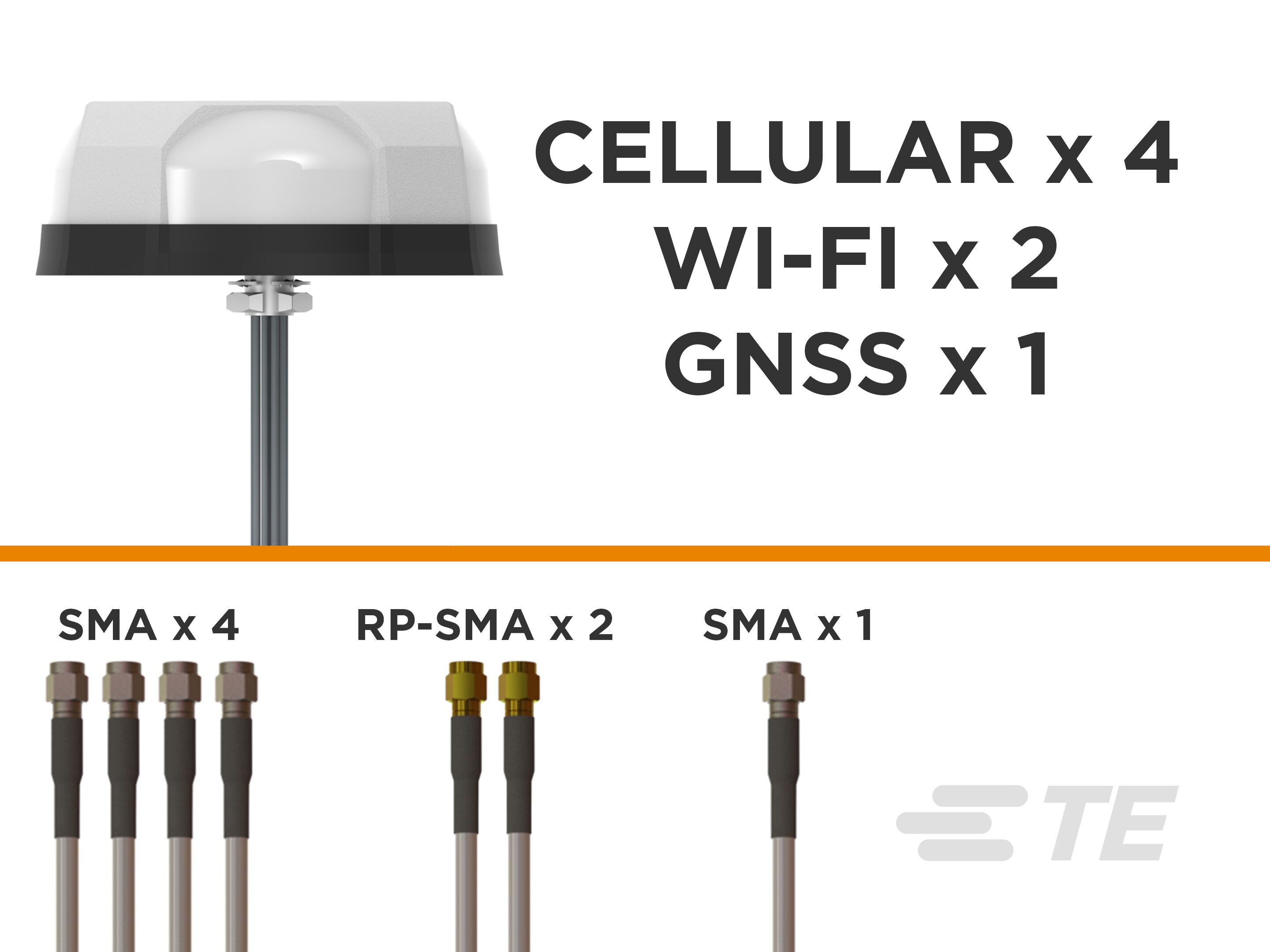

Dome/Puck Antenna, Multi Band, Vehicular, External Mount, Stud Mount, RP-SMA / SMA, Omnidirectional, Multiple Ports, > 6 dBi Peak Gain

Technical Specifications

Parameters and characteristics for this part

SpecificationL000434-09
Antenna TypeDome
ApplicationsGNSS, 3G, 4G, Bluetooth, 5G, Wi-Fi, LTE
FeaturesCable, 4.88m
Frequency (Center/Band)6.56GHz, 829MHz, 1.47GHz, 2.19GHz, 3.75GHz, 1.58GHz, 1.18GHz, 5.2GHz, 657.5MHz, 2.45GHz, 5.45GHz
Frequency (Center/Band) - 1657.5 MHz
Frequency (Center/Band) - 105.45 GHz
Frequency (Center/Band) - 116.56 GHz
Frequency (Center/Band) - 2829 MHz
Frequency (Center/Band) - 31.18 GHz
Frequency (Center/Band) - 41.47 GHz
Frequency (Center/Band) - 51.58 GHz
Frequency (Center/Band) - 62.19 GHz
Frequency (Center/Band) - 72.45 GHz
Frequency (Center/Band) - 83.75 GHz
Frequency (Center/Band) - 95.2 GHz
Frequency GroupWide Band
Frequency Range (Band 1) Maximum698 MHz
Frequency Range (Band 1) Minimum617 MHz
Frequency Range (Band 10) Maximum6 GHz
Frequency Range (Band 10) Minimum4.9 GHz
Frequency Range (Band 11) Maximum7.13 GHz
Frequency Range (Band 11) Minimum6 GHz
Frequency Range (Band 2) Maximum960 MHz
Frequency Range (Band 2) Minimum698 MHz
Frequency Range (Band 3) Maximum1.19 GHz
Frequency Range (Band 3) Minimum1.16 GHz
Frequency Range (Band 4) Maximum1.51 GHz
Frequency Range (Band 4) Minimum1.43 GHz
Frequency Range (Band 5) Maximum1.61 GHz
Frequency Range (Band 5) Minimum1.56 GHz
Frequency Range (Band 6) Maximum2.7 GHz
Frequency Range (Band 6) Minimum1.69 GHz
Frequency Range (Band 7) Maximum2.5 GHz
Frequency Range (Band 7) Minimum2.4 GHz
Frequency Range (Band 8) Maximum4.2 GHz
Frequency Range (Band 8) Minimum3.3 GHz
Frequency Range (Band 9) Maximum6 GHz
Frequency Range (Band 9) Minimum4.4 GHz
Gain0.9 dBi, -4 dBi
Height (Max)2.752 in
Ingress ProtectionIP69K, IP67
Mounting TypeStud
Number of Bands12
Power - Max10 VA
RF Family/StandardNavigation, General ISM, Bluetooth, WiFi, Cellular
TerminationSMA Male, RP-SMA Male
