18RC2S06 NA005

Active

ALPHA WIRE

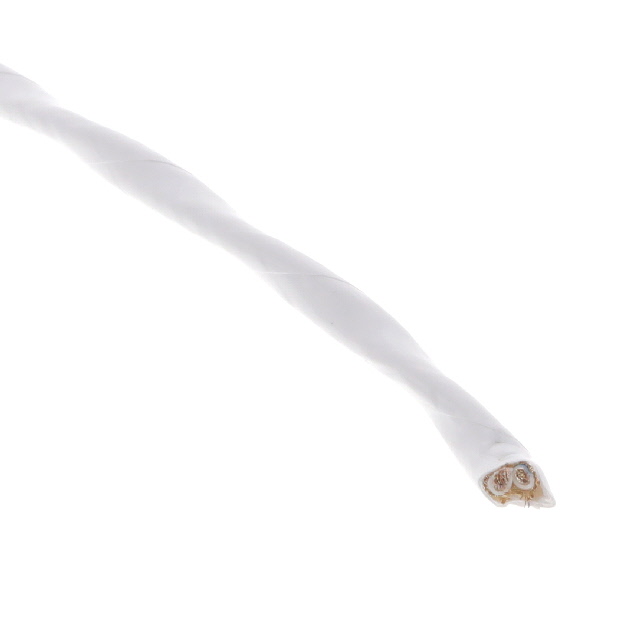

CABLE 2COND 18AWG NAT SHLD 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 2COND 18AWG NAT SHLD 100'

Technical Specifications

Parameters and characteristics for this part

Specification	18RC2S06 NA005

Cable Type	Multi-Conductor
Conductor Insulation	Polytetrafluoroethylene (PTFE)
Conductor Material	Copper, Silver Coated
Conductor Strand [custom]	19
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	0.182 in
Jacket (Insulation) Diameter [diameter]	4.62 mm
Jacket (Insulation) Material	Polytetrafluoroethylene (PTFE)
Jacket (Insulation) Thickness	0.0098 in
Jacket (Insulation) Thickness	0.25 mm
Jacket Color	Natural
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	2
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Shield Coverage	85 %
Shield Material	Copper, Silver Coated
Shield Type	Braid
Voltage	600 V
Wire Gauge	18 AWG

CABLE 2COND 18AWG NAT SHLD 100'

Part	Shield Coverage	Wire Gauge	Jacket Color	Shield Type	Cable Type	Voltage	Length [x]	Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Conductors	Shield Material	Jacket (Insulation) Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Insulation	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]
ALPHA WIRE 18RC2S06 NA005	85 %	18 AWG	Natural	Braid	Multi-Conductor	600 V	30.5 m	100 ft	-55 °C	200 °C	2	Copper, Silver Coated	Polytetrafluoroethylene (PTFE)	0.0098 in	0.25 mm	Polytetrafluoroethylene (PTFE)	Copper, Silver Coated	19	30 AWG	0.182 in	4.62 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 640.25

General part information

2 Conductor Multi-Conductor Cable Natural 18 AWG Braid 100.0' (30.5m)
