S12-DHS1-5KSA5
ActiveStandex-Meder Electronics

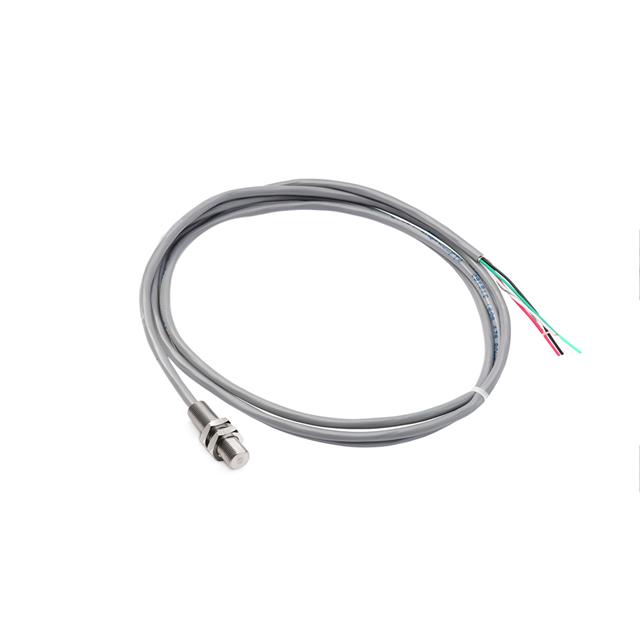

DUAL HALL SWITCH - CYLINDER, THR
S12-DHS1-5KSA5
ActiveStandex-Meder Electronics
DUAL HALL SWITCH - CYLINDER, THR
Description
General part information
S12-DHS1-5KSA5
Magnetic Hall Effect Switch Magnet NPN Cable Leads Cylinder, Threaded - M12
Technical Specifications
Parameters and characteristics for this part
| Specification | S12-DHS1-5KSA5 |
|---|---|
| Actuator Material | Magnet |
| Frequency | 20 kHz |
| Must Operate (Magnetic Field) | 5.5 mT |
| Must Release | 3.5 mT |
| Operating Temperature (Max) | 110 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | NPN |
| Package / Case | Threaded - M12, Cylinder |
| Termination Style | Cable Leads |
| Type | Hall Effect Switch |
| Voltage - Supply (Maximum) | 28 V |
| Voltage - Supply (Minimum) | 4.5 V |
