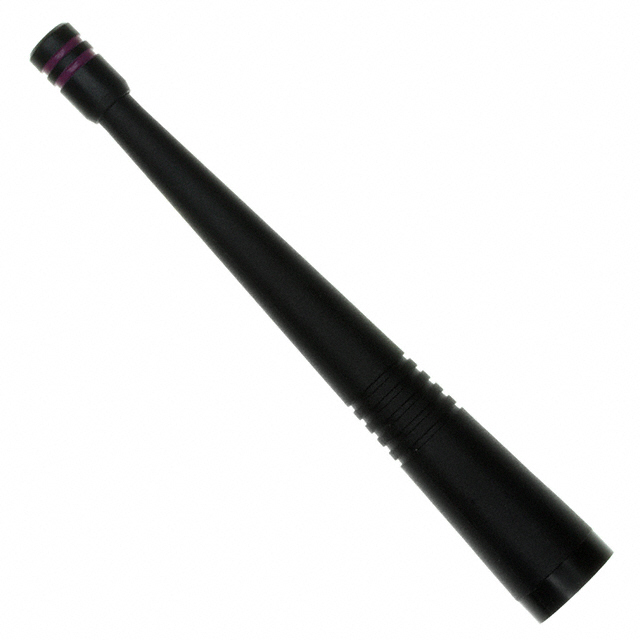

Specification	ANT-2.4-CW-QW-RPS

Antenna Type	Straight, Whip
Applications	Zigbee™, Wi-Fi, Thread, Bluetooth
Frequency (Center/Band)	2.4GHz, 2.6GHz, 2.5GHz, 2.3GHz
Frequency (Center/Band) - 1	2.3 GHz
Frequency (Center/Band) - 2	2.4 GHz
Frequency (Center/Band) - 3	2.5 GHz
Frequency (Center/Band) - 4	2.6 GHz
Frequency Group	UHF
Frequency Group Maximum (UHF)	3 GHz
Frequency Group Minimum (UHF)	2 GHz
Frequency Range (Max)	2.6 GHz
Frequency Range (Min)	2.35 GHz
Gain	1.1 dBi
Height (Max)	4.134 in
Mounting Type	Connector Mount
Number of Bands	1
RF Family/Standard	802.15.4, Bluetooth, WiFi
Termination Type	RP-SMA Male
VSWR	1.9

ANT-2.4 Series

Part	Height (Max)	Antenna Type	Applications	Frequency (Center/Band)	Frequency Range (Max)	Frequency Range (Min)	Number of Bands	Frequency Group Minimum (UHF)	Frequency Group	Frequency Group Maximum (UHF)	Mounting Type	VSWR	Gain	Termination	RF Family/Standard	Ingress Protection	Features	Termination Type	Return Loss	Power - Max
TE Connectivity AMP Connectors ANT-2.4-JJB-RA	0.571 "	Right Angle Whip	Bluetooth Thread Wi-Fi Zigbee™	2.4 GHz	2.48 GHz	2.39 GHz	1	2 GHz	UHF	3 GHz	Through Hole	2	3.3 dBi	Solder	802.15.4 Bluetooth WiFi
TE Connectivity AMP Connectors ANT-2.4-PW-LP	1.988 in	Straight Whip	Bluetooth Thread Wi-Fi Zigbee™	2.4 GHz	2.6 GHz	2.35 GHz	1	2 GHz	UHF	3 GHz	Panel Mount	1.9	-1.9 dBi	Screw-Mount	802.15.4 Bluetooth WiFi
TE Connectivity AMP Connectors ANT-2.4-ID-2000-RPS	4.11 in	Straight Whip	Bluetooth Thread Wi-Fi Zigbee™	2.4 GHz 2.44 GHz	2.6 GHz 2485 MHz	2.35 GHz 2.4 GHz	1	2 GHz	UHF	3 GHz	Bracket Mount	1.9	3 dBi		802.15.4 Bluetooth WiFi	IP67	2m Cable	RP-SMA Male
TE Connectivity AMP Connectors ANT-2.4-LCW-RPS	3.272 in	Tilt Whip	ISM U-NII WiFi WLAN	2.45 GHz	2.5 GHz	2.4 GHz	1	2 GHz	UHF	3 GHz	Connector Mount	1.9	2.8 dBi		802.15.4 Bluetooth General ISM WiFi			RP-SMA Male
TE Connectivity AMP Connectors ANT-2.4-CW-RH-SMA	1.063 in	Straight Whip	Bluetooth Thread Wi-Fi Zigbee™	2.4 GHz	2.49 GHz	2.39 GHz	1	2 GHz	UHF	3 GHz	Connector Mount	2	-0.9 dBi		802.15.4 Bluetooth WiFi			SMA Male
TE Connectivity AMP Connectors ANT-2.4-LPW-125	3.693 in	Tilt Whip	Bluetooth ISM Wi-Fi WLAN Zigbee™	2.4 GHz	2.4835 GHz	2.4 GHz	1	2 GHz	UHF	3 GHz	Panel Mount	1.5	2.8 dBi	I-PEX MHF1 (U.FL)	Bluetooth WiFi		125mm Cable		-14.6 dB	10 VA
TE Connectivity AMP Connectors ANT-2.4-JJB-ST	0.693 in	Straight Whip	Bluetooth Thread Wi-Fi Zigbee™	2.4 GHz	2.48 GHz	2.39 GHz	1	2 GHz	UHF	3 GHz	Through Hole	2	-1.5 dBi	Solder	802.15.4 Bluetooth WiFi
TE Connectivity AMP Connectors ANT-2.4-CW-HW-T	4.724 in	Straight Whip	General Purpose	2.475 GHz	2.6 GHz	2.35 GHz	1	2 GHz	UHF	3 GHz	Connector Mount	2	3.2 dBi	RP-SMA RP-SMA Female	Bluetooth
TE Connectivity AMP Connectors ANT-2.4-CW-RCS	2.106 in	Right Angle Whip	Bluetooth Thread Wi-Fi Zigbee™	2.4 GHz	2.5 GHz	2.35 GHz	1	2 GHz	UHF	3 GHz	Connector Mount	1.9	-0.2 dBi		802.15.4 Bluetooth WiFi			RP-SMA Male
TE Connectivity AMP Connectors ANT-2.4-OC-LG-RPS	7.618 in	Tilt Whip	Bluetooth Thread Wi-Fi Zigbee™	2.4 GHz	2.55 GHz	2.39 GHz	1	2 GHz	UHF	3 GHz	Connector Mount	2	4 dBi		802.15.4 Bluetooth WiFi			RP-SMA Male
