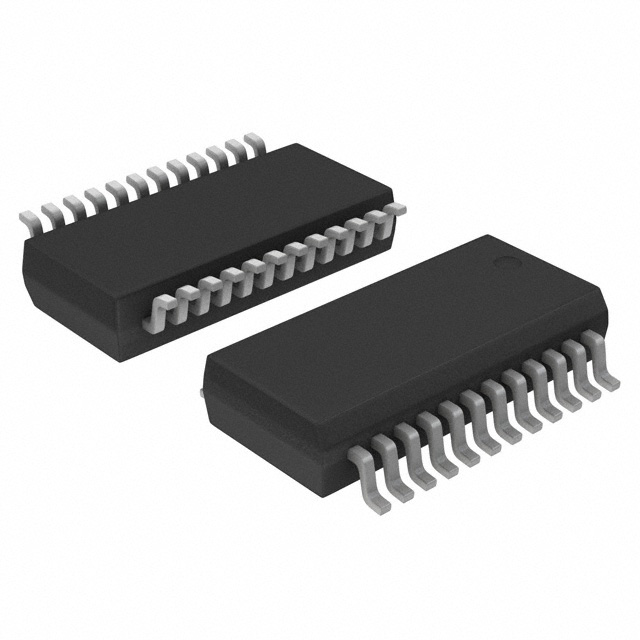

MXL1344ACAG+
ActiveAnalog Devices Inc./Maxim Integrated
IC CABLE TERM MULTIPROTCL 24SSOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MXL1344ACAG+
ActiveAnalog Devices Inc./Maxim Integrated
IC CABLE TERM MULTIPROTCL 24SSOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MXL1344ACAG+ | MXL1344 Series |
|---|---|---|
| Mounting Type | Surface Mount | Surface Mount |
| Number of Terminations | 6 | 6 |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | 0 °C | 0 °C |
| Package / Case | 24-SSOP | 24-SSOP |
| Supplier Device Package | 24-SSOP | 24-SSOP |
| Type | Cable | Cable |
| Voltage - Supply [Max] | 5.5 V | 5.5 V |
| Voltage - Supply [Min] | 4.5 V | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 12.79 | |
| 10 | $ 9.29 | |||
MXL1344 Series
IC CABLE TERM MP 24-SSOP
| Part | Voltage - Supply [Min] | Voltage - Supply [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Type | Number of Terminations | Supplier Device Package | Package / Case |
|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MXL1344ACAG+T | 4.5 V | 5.5 V | 70 °C | 0 °C | Surface Mount | Cable | 6 | 24-SSOP | 24-SSOP |
Analog Devices Inc./Maxim Integrated MXL1344ACAG+ | 4.5 V | 5.5 V | 70 °C | 0 °C | Surface Mount | Cable | 6 | 24-SSOP | 24-SSOP |
Description
General part information
MXL1344 Series
Cable Terminator 6 Terminations 24-SSOP
