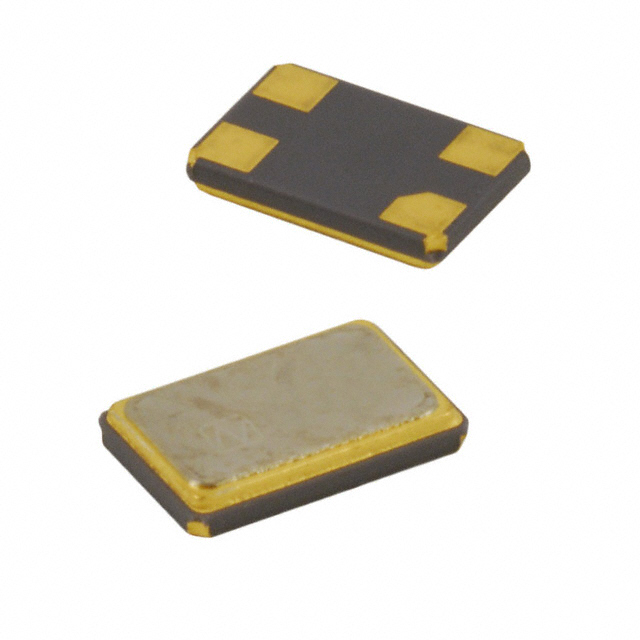

NX4025DA-15.360000MHZ-B7
ObsoleteNDK (NIHON DEMPA KOGYO CO., LTD)
CRYSTAL 15.3600MHZ 10PF SMD
NX4025DA-15.360000MHZ-B7
ObsoleteNDK (NIHON DEMPA KOGYO CO., LTD)
CRYSTAL 15.3600MHZ 10PF SMD
Description
General part information
NX4025DA-15.360000MHZ-B7
15.36 MHz ±10ppm Crystal 10pF 60 Ohms 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | NX4025DA-15.360000MHZ-B7 |
|---|---|
| ESR (Equivalent Series Resistance) | 60 Ohm |
| Frequency | 15.36 MHz |
| Frequency Stability | 10 ppm |
| Frequency Tolerance | 10 ppm |
| Height - Seated (Max) | 0.028 in |
| Load Capacitance | 10 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -20 °C |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension Length | 0.157 in |
| Size / Dimension Width | 0.098 in |
| Type | MHz Crystal |
