4310-013LF
ActiveTusonix a Subsidiary of CTS Electronic Components
CAP FEEDTHRU 3PF 100V AXIAL
4310-013LF
ActiveTusonix a Subsidiary of CTS Electronic Components
CAP FEEDTHRU 3PF 100V AXIAL
Description
General part information
4310-013LF

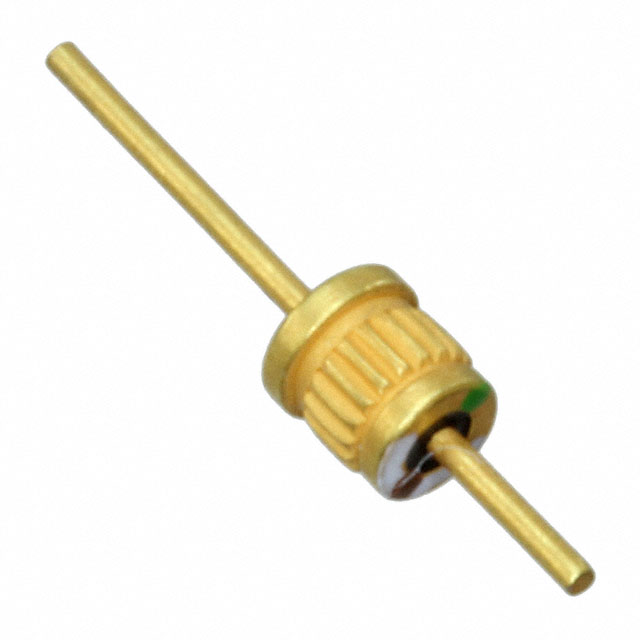

3 pF Feed Through Capacitor 100V 1 A Axial, Press Fit
Technical Specifications
Parameters and characteristics for this part
| Specification | 4310-013LF |
|---|---|
| Capacitance | 3 pF |
| Current | 1 A |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial, Press Fit |
| Size / Dimension Diameter | 0.094 in |
| Size / Dimension Length | 0.098 in |
| Type | Feed Through |
| Voltage - Rated | 100 VAC/DC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
