Description
General part information

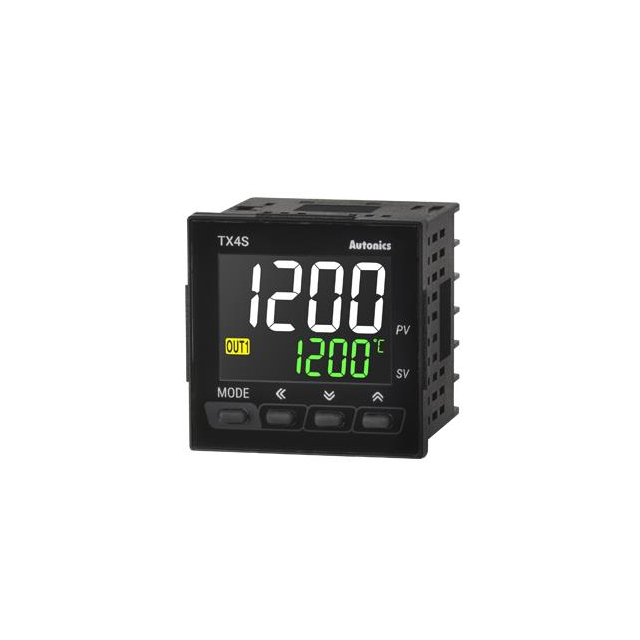

TX4S-24S
Temperature Controller (RTD, Type J, K, L, R, S, T) 100 ~ 240VAC Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | TX4S-24S |
|---|---|
| Control Method | Off, Proportional (PID), On |
| Display Characters - Height | 0.551 in |
| Display Characters - Height (Option 2) | 0.299 in |
| Display Type | LED - Dual Color Characters |
| Features | Limit Function |
| Ingress Protection Description | Dust Protected |
| Ingress Protection IP Rating | IP50 |
| Input Temperature (Max) | 1700 °C |
| Input Temperature (Min) | -100 °C |
| Maximum Number of Characters Per Row | 4 characters |
| Minimum Number of Characters Per Row | 4 characters |
| Mounting Type | Panel Mount |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -10 °C |
| Output Type | Voltage (External SSR) |
| Panel Cutout Length | 45 mm |
| Panel Cutout Shape | Square |
| Panel Cutout Width | 45 mm |
| Termination Style | Screw Terminal |
| Type | Temperature Controller (RTD, K, S, L, T), R, Type J |
| Voltage - Supply (Maximum) | 240 VAC |
| Voltage - Supply (Minimum) | 100 VAC |
