Description
General part information

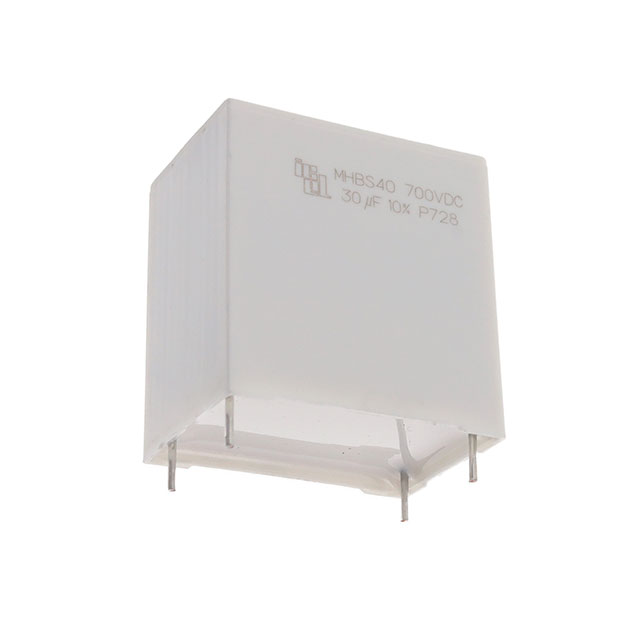

MHBS405300KJSD
30 µF Film Capacitor 700V Polypropylene (PP), Metallized Radial - 4 Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | MHBS405300KJSD |
|---|---|
| Applications | Switching, DC Link, DC Filtering, High Frequency |
| Capacitance | 30 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | 3.4 mOhm |
| Height - Seated (Max) | 1.772 in |
| Lead Spacing | 1.476 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package Leads | 4 Leads |
| Package Name | Radial |
| Size / Dimension Length | 1.673 in |
| Size / Dimension Width | 1.181 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - DC | 700 VDC |
