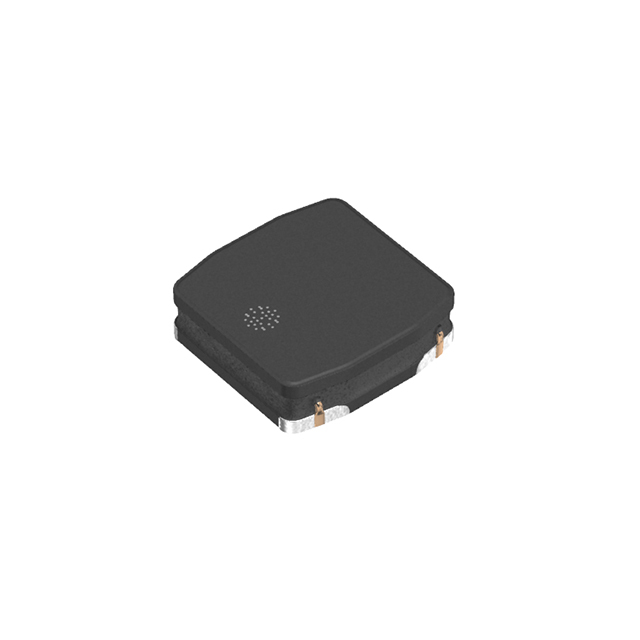

VLS4012HBX-1R5M
ActiveTDK Corporation
INDUCTOR POWER SHIELDED WIREWOUND 1.5UH 20% 1MHZ METAL 4.07A 0.066OHM DCR 1515 T/R
VLS4012HBX-1R5M
ActiveTDK Corporation
INDUCTOR POWER SHIELDED WIREWOUND 1.5UH 20% 1MHZ METAL 4.07A 0.066OHM DCR 1515 T/R
Description
General part information
VLS4012HBX-1R5M
1.5 µH Shielded Drum Core, Wirewound Inductor 4.52 A 66mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | VLS4012HBX-1R5M |
|---|---|
| Current - Saturation (Isat) | 6.21 A |
| Current Rating | 4.52 A |
| DC Resistance (DCR) (Max) | 66 mOhm |
| Height - Seated (Max) | 0.047 in |
| Inductance | 1.5 µH |
| Inductance Frequency - Test | 1 MHz |
| Material - Core | Metal |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.157 in |
| Size / Dimension Width | 0.157 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
