General part information

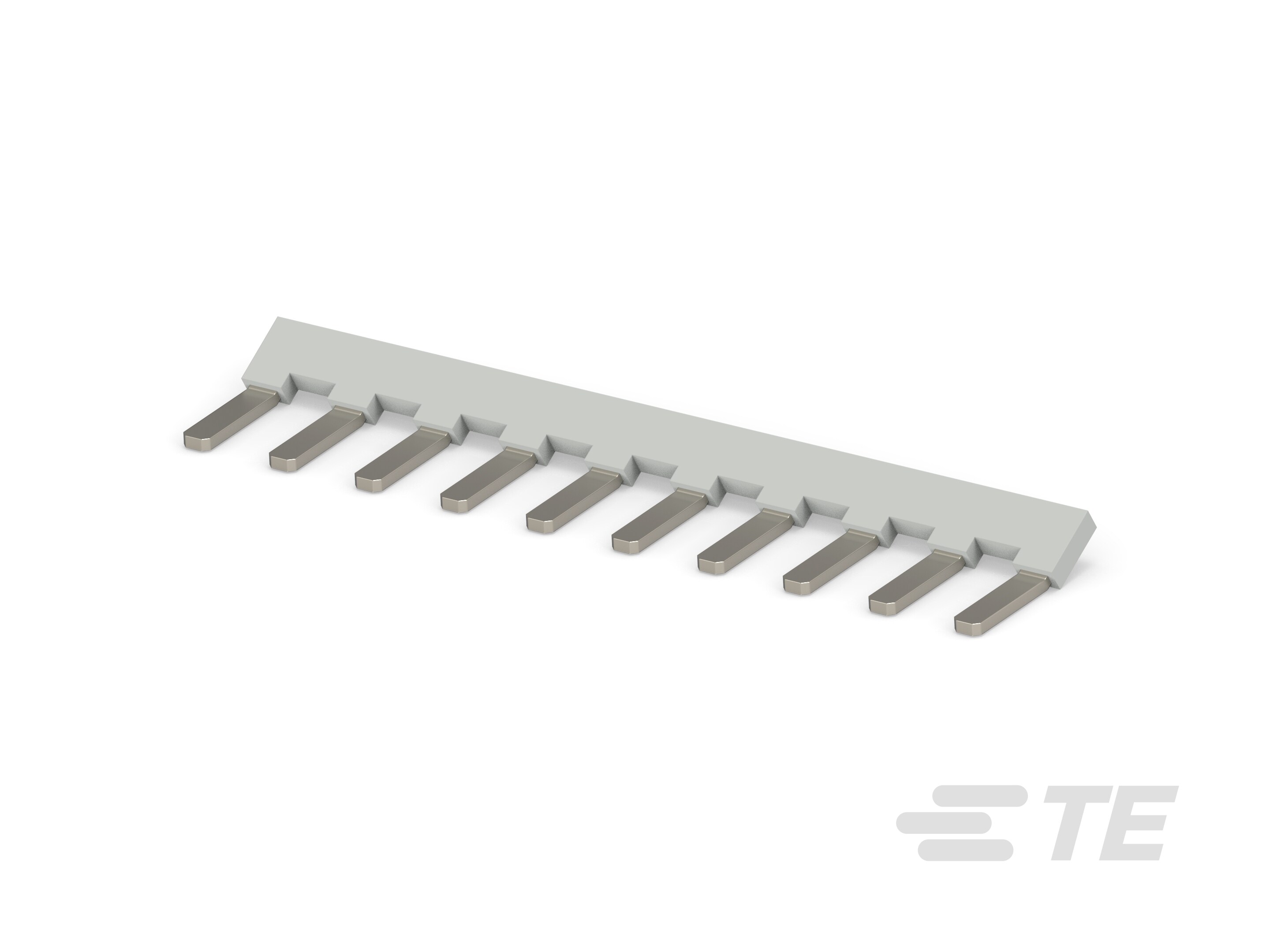

Jumper Bar, 10 Pole, Gray, 8 mm [.31 in] Spacing, -55 – 110 °C [-67 – 230 °F], ENTRELEC SNA
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
3D models and CAD resources for this part
Technical documentation and resources
| Part | Type | Number of Levels | Color | Termination Style | Wire Gauge or Range - AWG (Max) | Wire Gauge or Range - AWG (Min) | Current - UL | Voltage - IEC | Wire Gauge or Range - mm² (Minimum) | Wire Gauge or Range - mm² (Maximum) | Voltage - UL | Current - IEC | Terminal Width | Number of Positions | Grounded Levels | Disconnect Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | ||||||||||||||||
 TE Connectivity AMP Connectors | Feed Through | 1 | Black | Screw | 18 AWG | 6 AWG | 85 A | 1000 V | 2.5 mm² | 25 mm² | 600 V | 76 A | 12 mm | 2 | ||
 TE Connectivity AMP Connectors | Feed Through | 3 | Screw | 6 mm | 5 | 1 | ||||||||||
TE Connectivity AMP Connectors | Feed Through | 1 | Gray | Screw | 22 AWG | 12 AWG | 30 A | 1000 V | 0.2 mm² | 4 mm² | 600 V | 24 A | 5 mm | 2 | ||
TE Connectivity AMP Connectors | Disconnect | 1 | Gray | Screw | 18 AWG | 8 AWG | 30 A | 630 V | 0.5 mm² | 10 mm² | 150 V | 40 A | 8 mm | 2 | Slide Switch | |
 TE Connectivity AMP Connectors | Feed Through | 1 | Blue | Screw | 22 AWG | 10 AWG | 30 A | 1000 V | 0.2 mm² | 4 mm² | 600 V | 32 A | 6 mm | 2 | ||
 TE Connectivity AMP Connectors | Feed Through | 1 | Blue | Screw | 22 AWG | 10 AWG | 20 A | 800 V | 0.2 mm² | 4 mm² | 600 V | 32 A | 6 mm | 3 | ||
 TE Connectivity AMP Connectors | Feed Through | 1 | Beige | Screw | 22 AWG | 8 AWG | 50 A | 1000 V | 0.5 mm² | 10 mm² | 600 V | 41 A | 8 mm | 2 | ||
TE Connectivity AMP Connectors | ||||||||||||||||
 TE Connectivity AMP Connectors |
